Wiper Arm: Service and Repair
Front Wiper ArmREMOVAL 1.
Open front hood.
2.
Remove cap.
3.

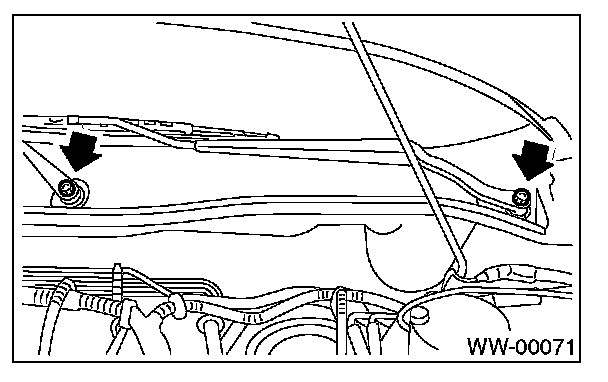

Remove nut to remove arm.
INSTALLATION 1.
Install in the reverse order of removal.
2.
Operate wiper once.
3.

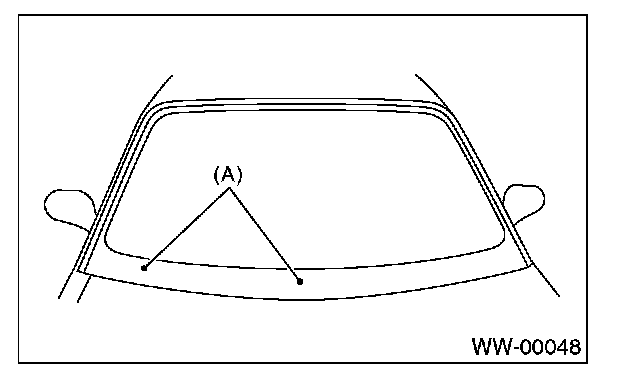

Align
wiper blade to ceramic print point mark (A) of front window pane.
Tightening torque: Refer to COMPONENT in General Description.
