Timing Cover: Service and Repair

Timing Belt Cover

REMOVAL
1. Remove the V-belts.
2. Remove the crank pulley.

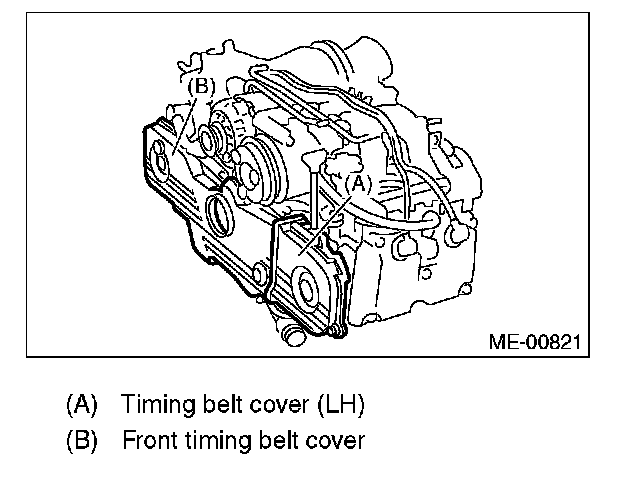

3. Remove the timing belt cover (LH).
4. Remove the front timing belt cover.

INSTALLATION

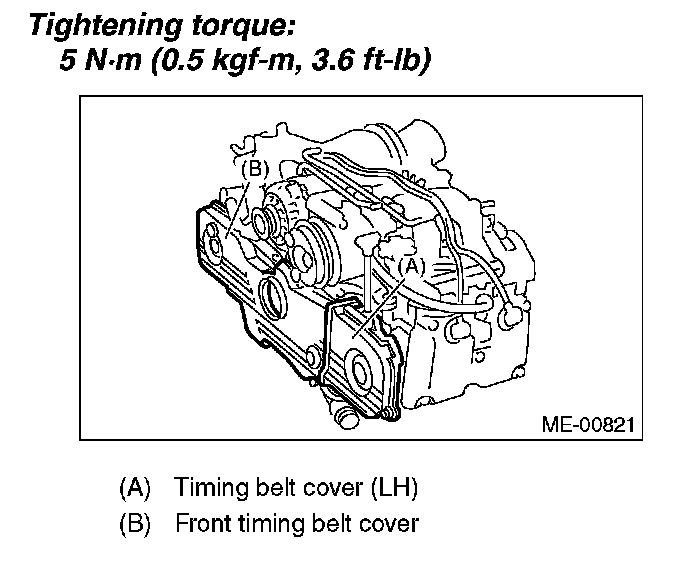

1. Install the front timing belt cover.
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
2. Install the timing belt cover (LH).
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)

3. Install the crank pulley.
4. Install the V-belts.

INSPECTION
Check the cover for damage.
