Blower Motor: Service and Repair
Blower Motor Unit AssemblyREMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the glove box.

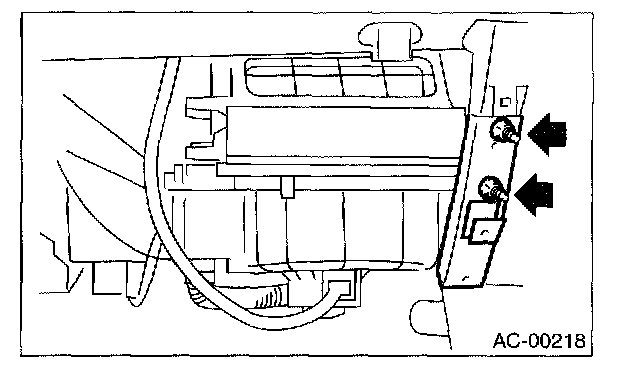

3.
Loosen the nut to remove the support beam stay.

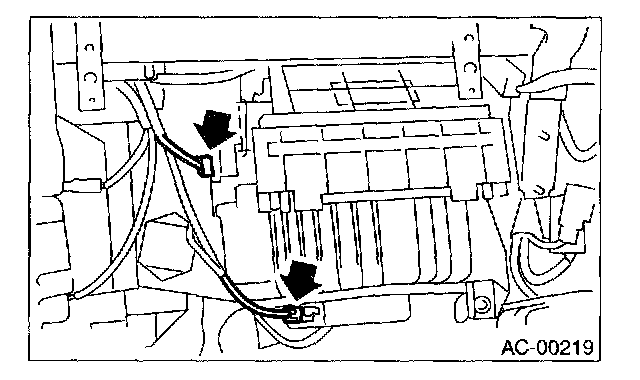

4.
Disconnect the connectors of
blower motor and intake actuator resistor.

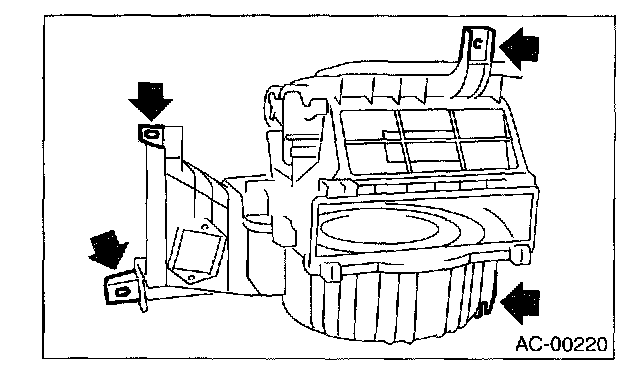

5.
Loosen the bolt and nut to remove
blower motor unit assembly.
INSTALLATIONInstall in the reverse order of removal.
