Trunk Lamp: Service and Repair
Luggage Room LightREMOVAL 1.
Disconnect the ground cable from battery.
2.

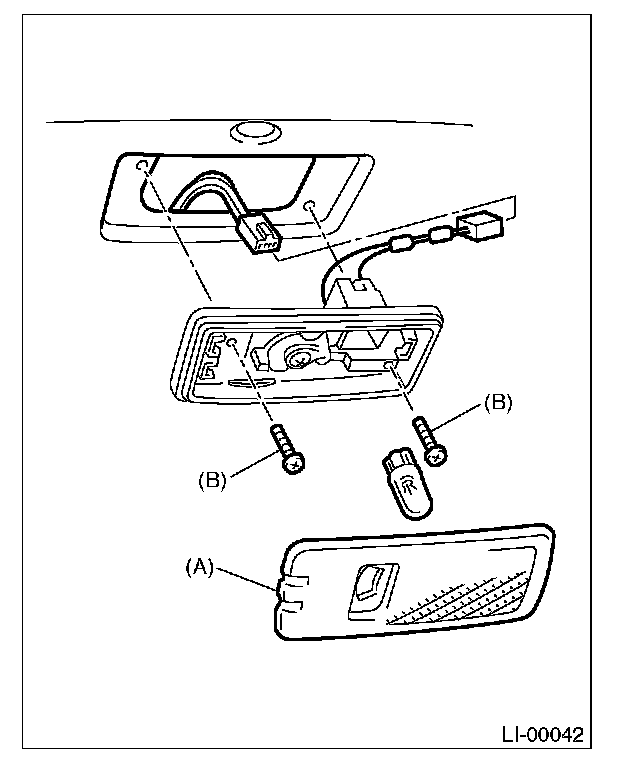

Remove the lens (A) and mounting screws (B) of the cargo room light.
3.
Disconnect the harness connectors and remove the luggage room light.
INSTALLATIONInstall in the reverse order of removal.
