Combination Switch: Service and Repair
Combination Switch (Light)REMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the instrument panel lower cover.
3.

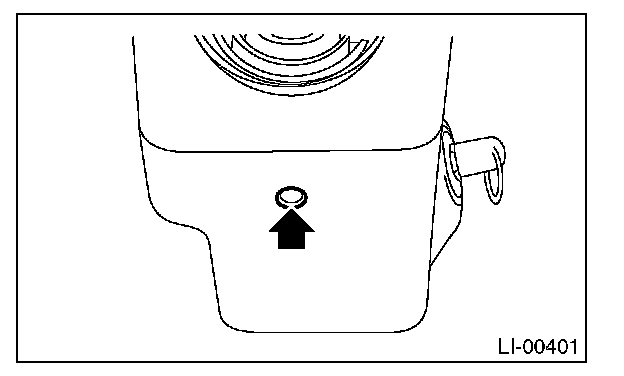

Remove the screws which secure upper column cover to lower column cover.
4.
Disconnect the connector from
combination switch.
5.

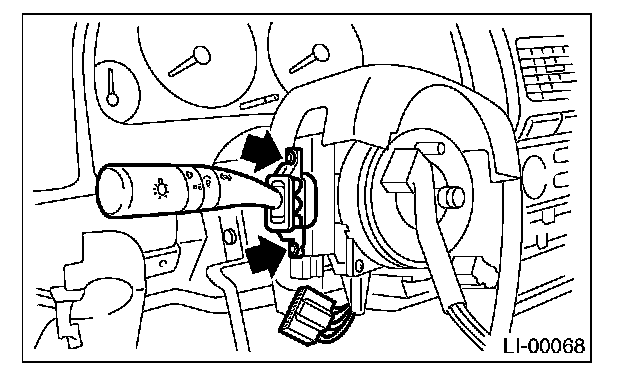

Remove the screws which secure the switch,then remove the switch.
INSTALLATIONInstall in the reverse order of removal.
