Check Power Supply and Ground Line of Engine Control Module (ECM)
CHECK POWER SUPPLY AND GROUND LINE OF ENGINE CONTROL MODULE (ECM)CAUTION: After repairing or replacing the defective part, carry out the Clear Memory Mode
Clearing Diagnostic Trouble Codes and Inspection Mode

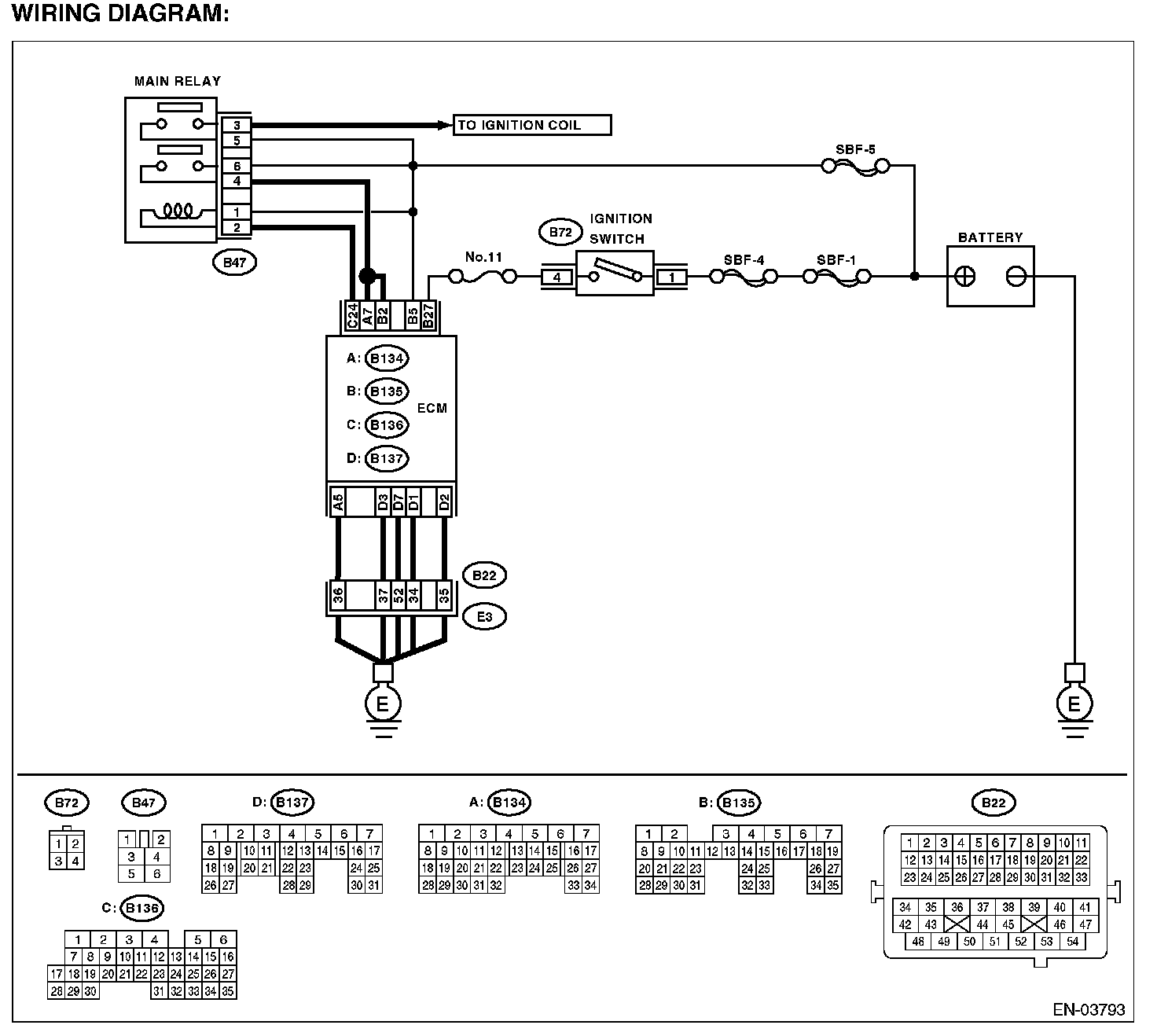

Diagnostic Trouble Code DescriptionsWiring Diagram:

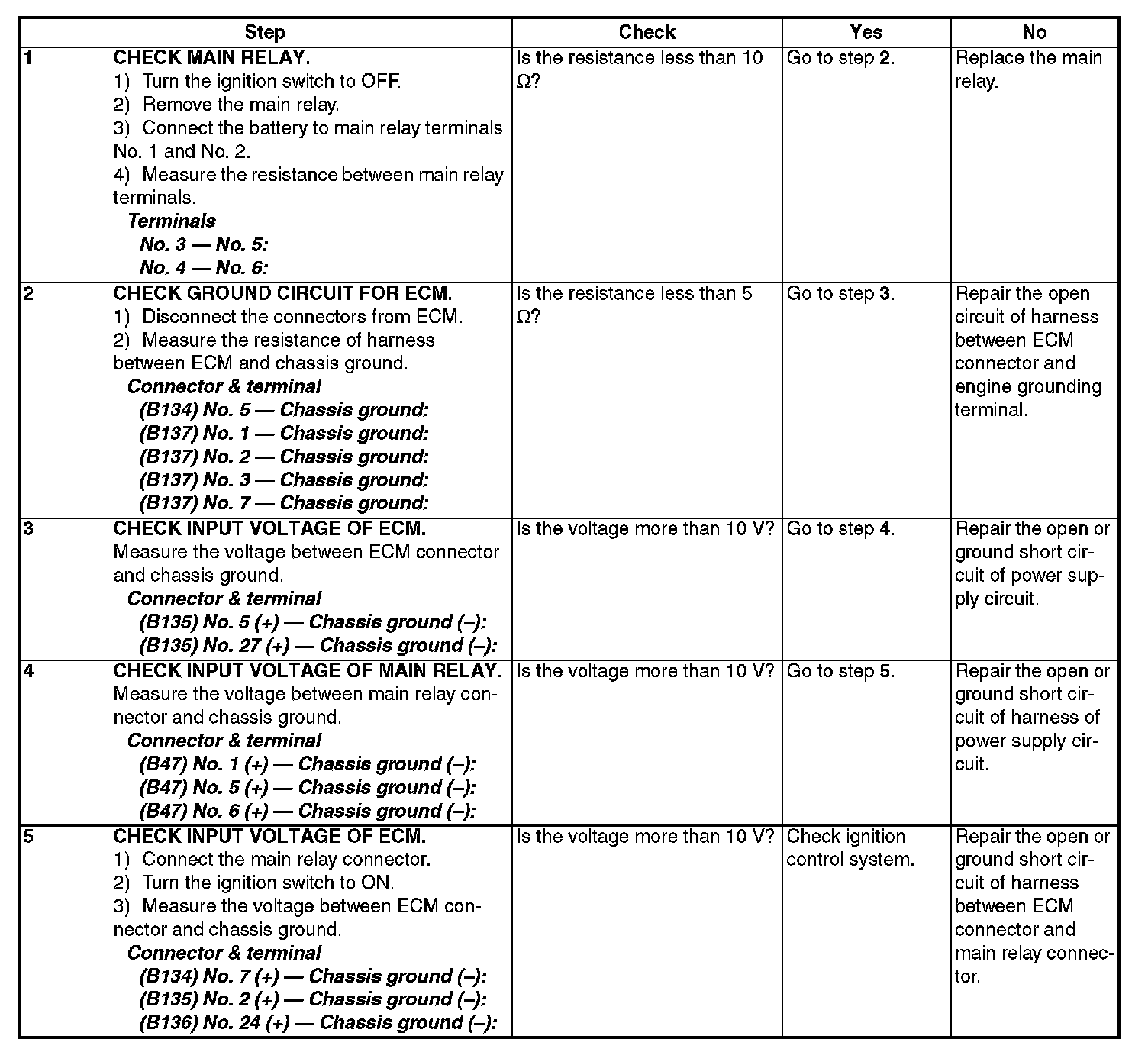

Step 1 - 5:
