General Diagnostic Table

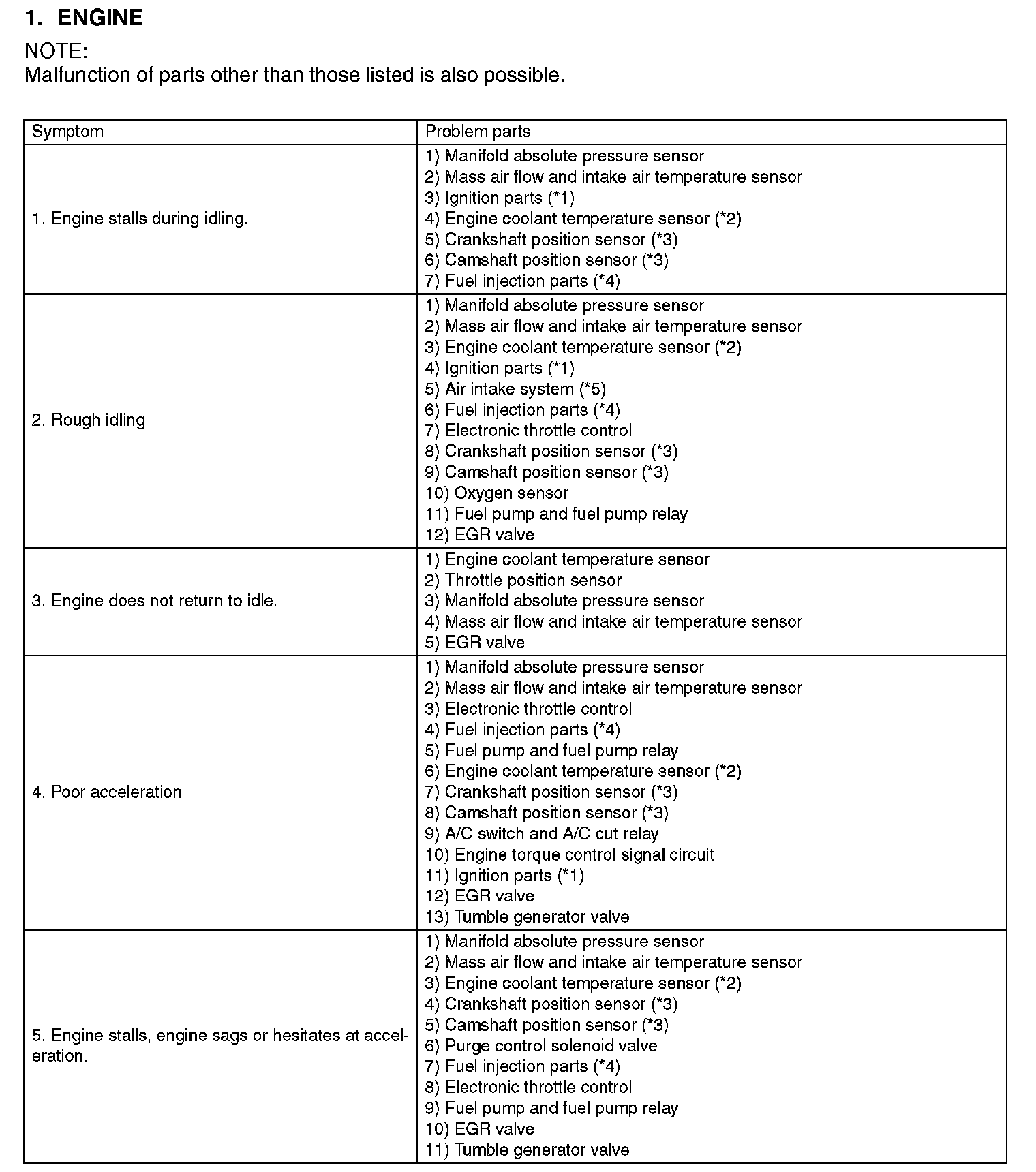

GENERAL DIAGNOSTIC TABLEINSPECTIONGeneral Diagnostic Table (Part 1):

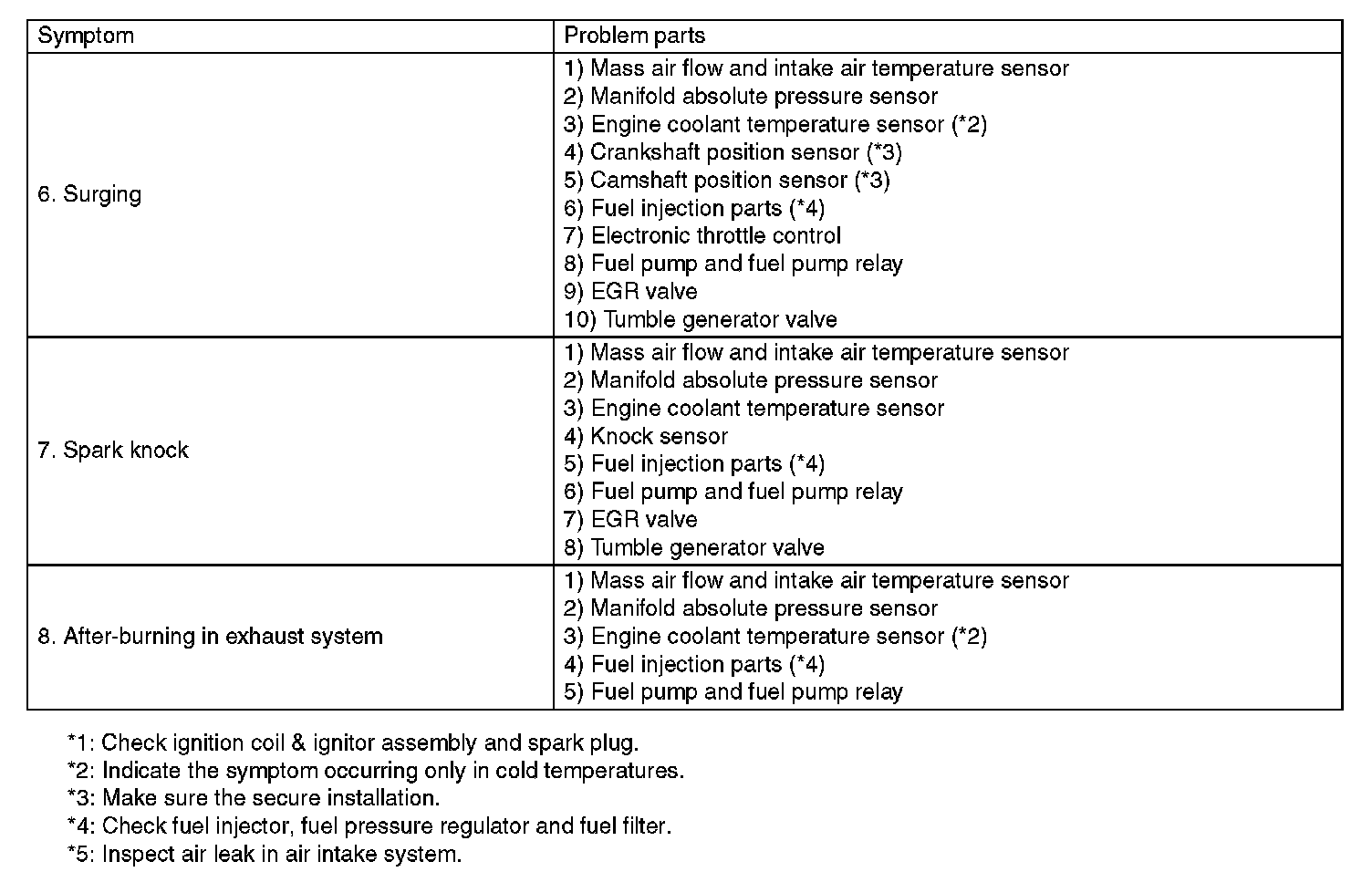

General Diagnostic Table (Part 2):
1. ENGINE 2. AUTOMATIC TRANSMISSION NOTE: Check general diagnostics table with non-conformity symptom for automatic transmission.
