Leak Detection Solenoid: Service and Repair

PRESSURE CONTROL SOLENOID VALVE

REMOVAL

1. Set the vehicle on a lift.




2. Disconnect the ground cable from the battery.
3. Lift-up the vehicle.
4. Remove the canisters.

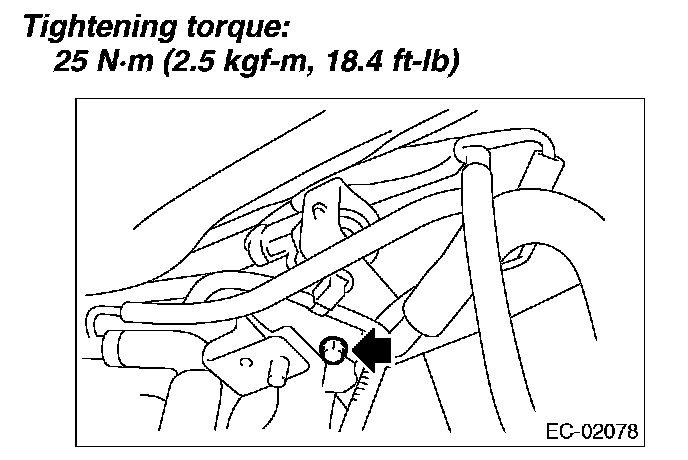

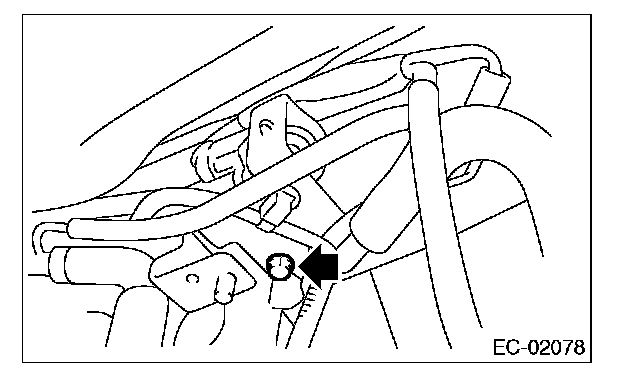

5. Remove the bolt which installs the pressure control solenoid valve holding bracket to the body.

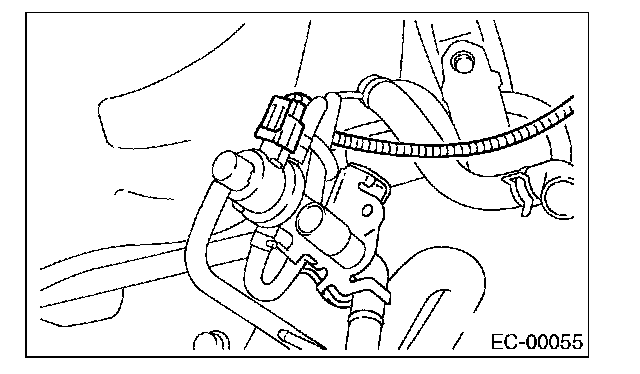

6. Disconnect the connector from the pressure control solenoid valve.




7. Disconnect the two evaporation hoses from the pressure control solenoid valve.

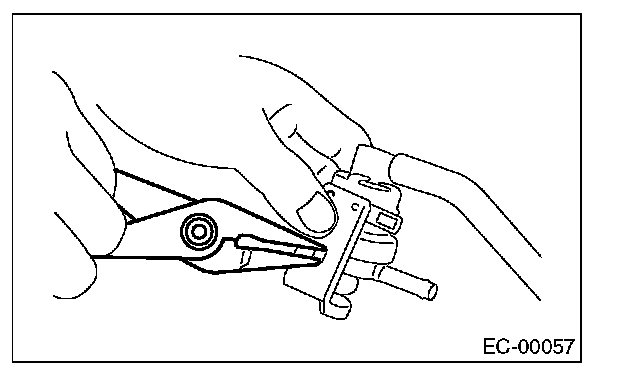

8. Remove the pressure control solenoid valve from the bracket.

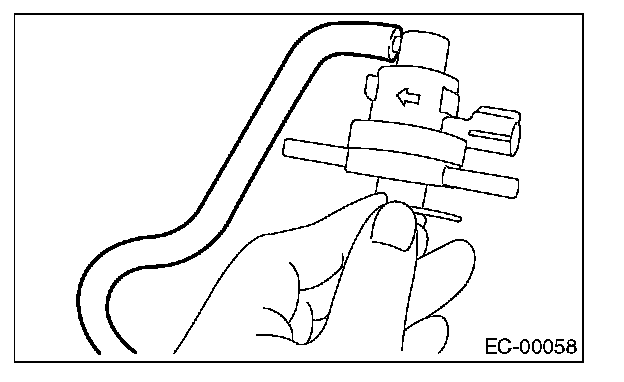

9. Disconnect the hose from the pressure control solenoid valve.

INSTALLATION




Install in the reverse order of removal.
