Transfer Clutch Pressure Test
Transfer Clutch Pressure TestINSPECTION

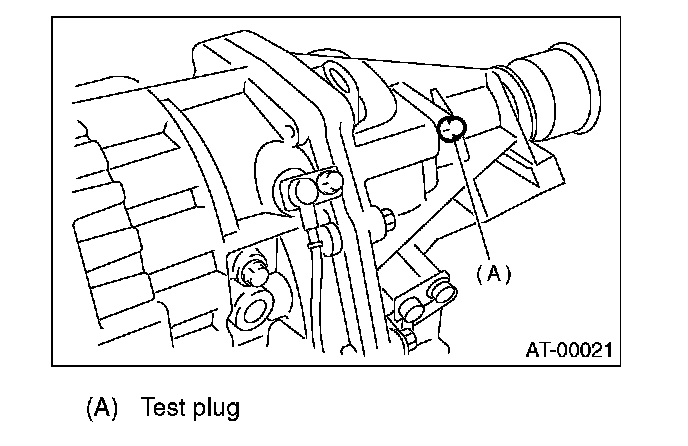

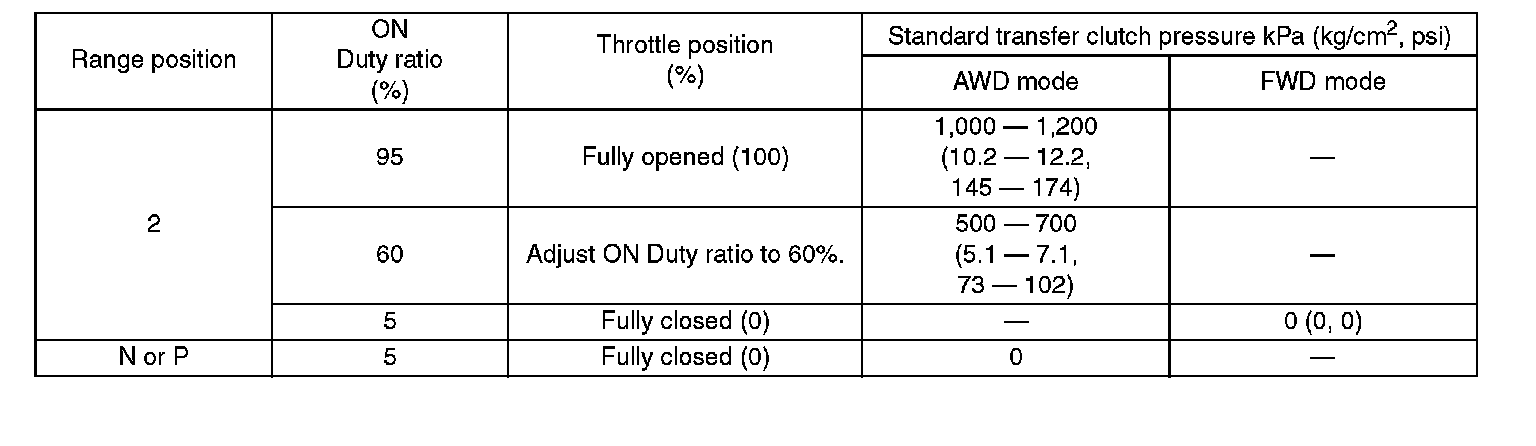

Check the transfer clutch pressure in accordance with the following procedures, in the same manner as with line pressure.
ST 498897700 OIL PRESSURE ADAPTER SET
ST 498575400 OIL PRESSURE GAUGE ASSEMBLY
NOTE: Before setting in FWD mode test, install the spare fuse on FWD mode switch. (Only models with MPT)
NOTE:
^ If no oil pressure is produced or if it does not change in AWD mode, the transfer duty solenoid or the control valve body may be malfunctioning.
^ If oil pressure is produced in FWD mode, there is the same problem as the AWD mode. (Only models with MPT)
