Camshaft, Engine

Camshaft Cap

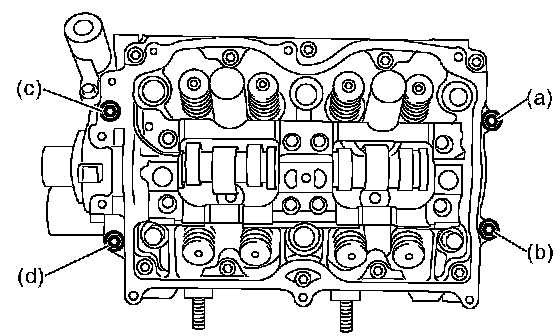

Temporarily tighten the bolts (a) through (d) in alphabetical sequence.





Install the valve rocker assembly.

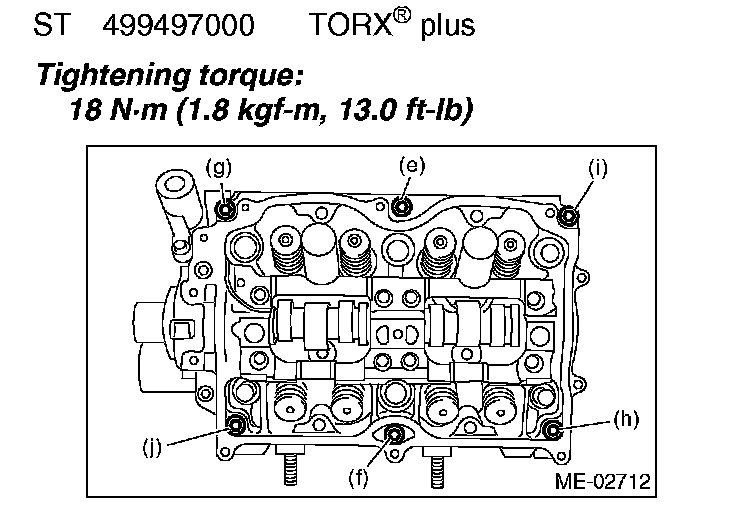

Tighten the TORX bolts (e) through (j) in alphabetical sequence using ST. ST 499497000 TORX plus
Tightening torque 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)

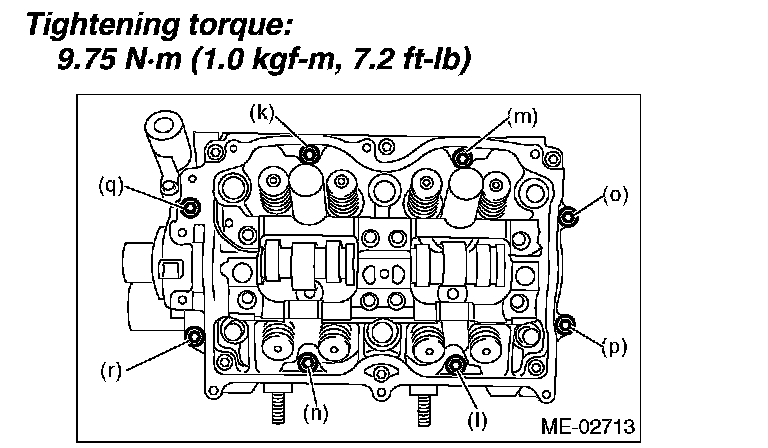

Tighten the bolts (k) through (r) in alphabetical sequence.
Tightening torque 9.75 Nm (1.0 kgf-m, 7.2 ft. lbs.)





Tighten the bolts (s) and (t) in alphabetical sequence.
Tightening torque 9.75 Nm (1.0 kgf-m, 7.2 ft. lbs.)
