Wiper and Washer Systems: Service and Repair
Rear WasherREMOVAL 1.
Remove the rear gate upper trim.
2.
Remove the washer hose from the washer nozzle.
3.

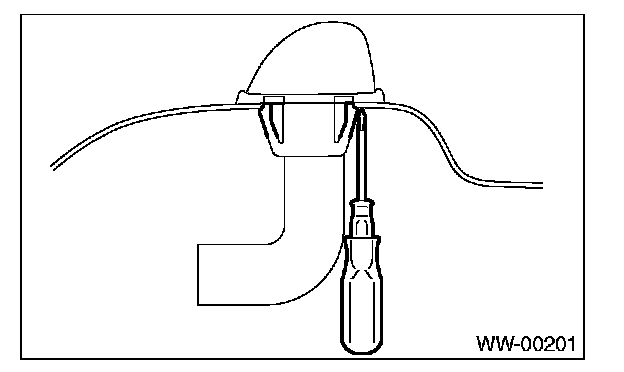

Push the anchor of the washer nozzle body with a flat tip screwdriver or equivalent, and remove the washer nozzle.
INSTALLATION 1.
Install in the reverse order of removal.
2.
Adjust the position of the washer liquid sprayer.
