Wiper Switch: Service and Repair

Combination Switch (Wiper)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower cover.
3. Loosen the screw to remove a steering column lower cover.

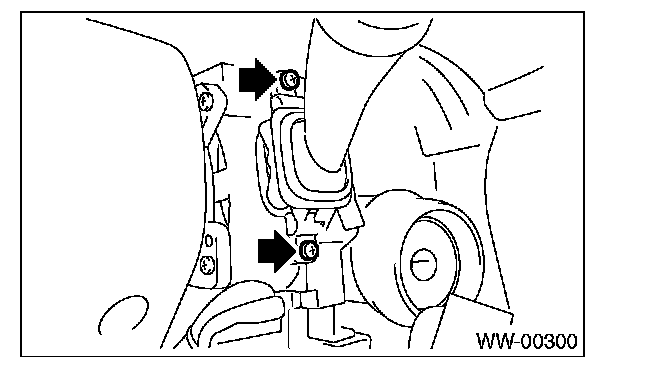

4. Remove the steering column upper cover mounting screw.
5. Disconnect the connector from combination switch.

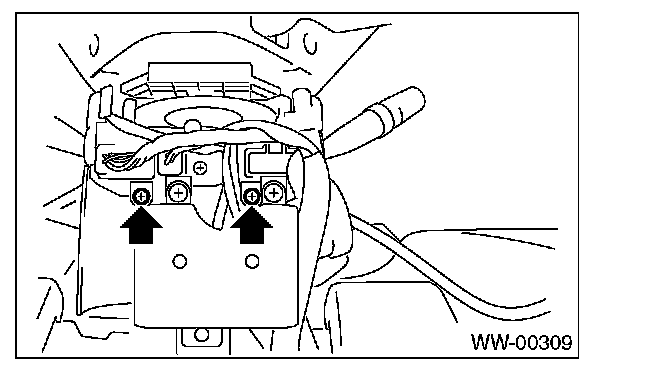

6. Loosen the screw to remove the combination switch.

INSTALLATION
Install in the reverse order of removal.
