Ignition Coil

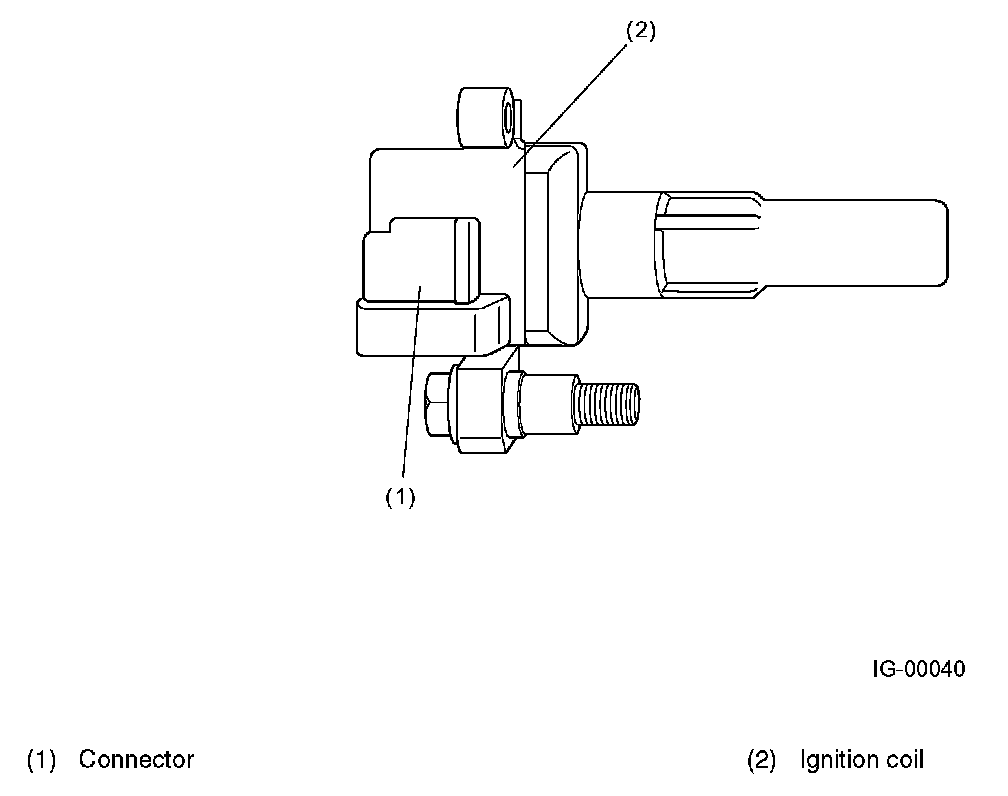

Ignition CoilThe engine uses a direct
ignition system with one
ignition coil mounted for each cylinder.
The secondary terminal of the
ignition coil is in contact with the
spark plug terminal. Since no spark plug cable is used, secondary voltage drop, short circuit at connections, or other problems that are inherent in a system using spark plug cables do not occur. The result is high reliability.
