License Plate Light
License Plate LightREMOVAL 1. SEDAN MODEL 1.
Remove the trunk lid trim.
2.

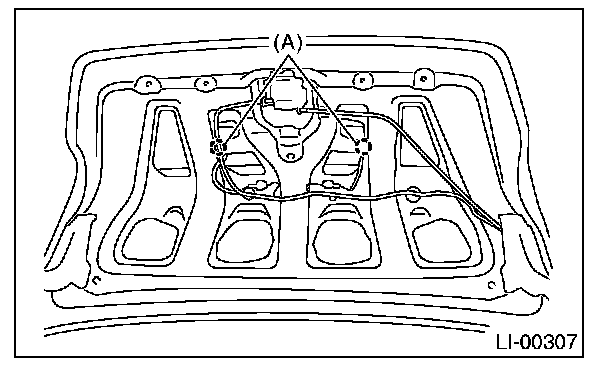

Turn and remove the bulb socket (A).
3.
Remove the bulb.
2. WAGON MODEL 1.

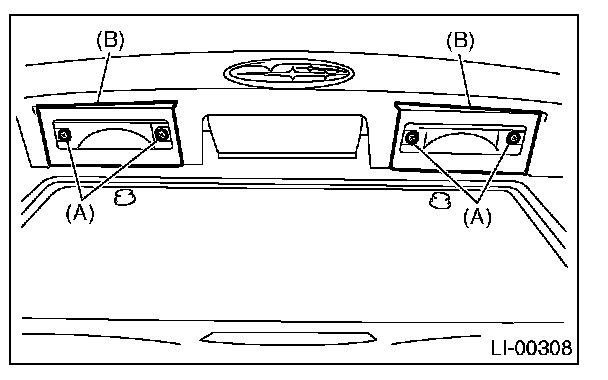

Remove the license plate light mounting screw (A) and then remove the lens (B).
2.
Remove the bulb.
INSTALLATIONInstall in the reverse order of removal.
