Windshield Washer Spray Nozzle: Adjustments

Front Washer Nozzle

ADJUSTMENT

1. Turn the wiper switch to OFF position.

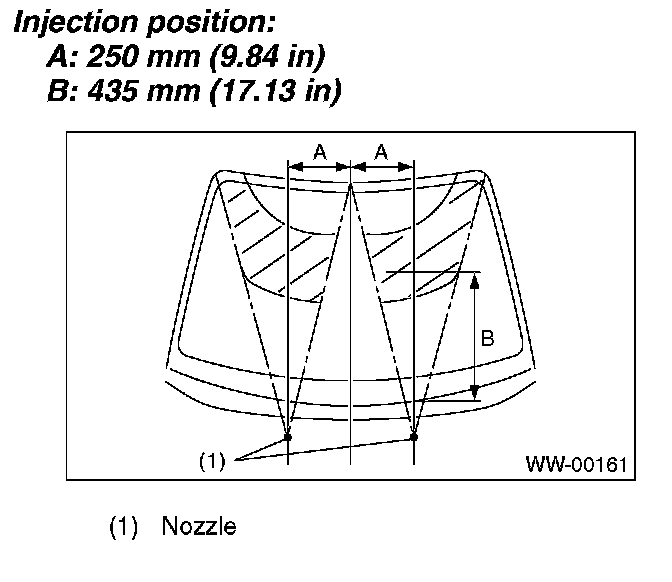

2. While the vehicle is at standstill, adjust the washer injection position as shown in the figure.

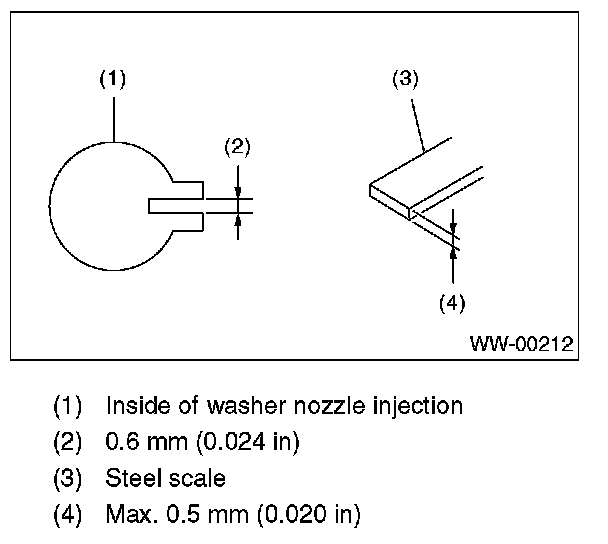

Injection angle should be adjusted with 0.5 mm(0.020 in) thickness steel scale. Use maximum thickness of 0.5 mm steel scale, because the injection slit width of washer nozzle is 0.6 mm (0.024 in).
Adjusting with a flat tip driver may damage the injection slit and cause the faulty injection.
