Antitheft Antenna: Service and Repair
Immobilizer AntennaREMOVAL 1.
Disconnect the ground cable from the battery.
2.
Remove the instrument panel lower cover.
3.
Remove the screws, and detach the upper column cover and lower column cover.
4.

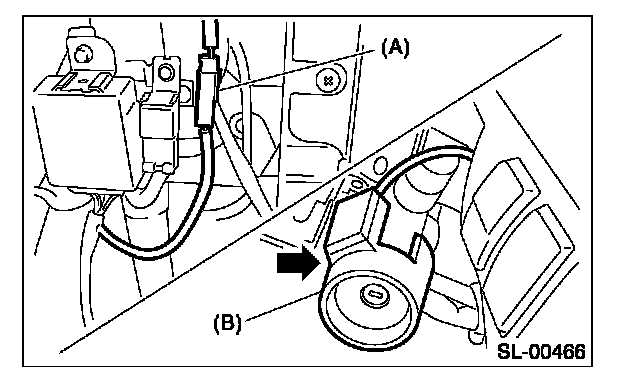

Disconnect the immobilizer antenna connector (A) from body harness.
5.
Remove the screws and detach the immobilizer antenna (B).
INSTALLATIONInstall in the reverse order of removal.
