Removal and Replacement

FRONT BUMPER

Front Bumper:

REMOVAL

1. Disconnect the ground cable from battery.
2. Disengage the three clips, and then remove the mud guard and front under cover.






3. Turn over the mud guard, and remove one inside clip that secure the front bumper to the fender.






4. Turn over the mud guard and disconnect the fog light connector.
5. Remove the seven clips, and then lightly pull the bumper to remove it.






6. Remove the E/A form from bumper beam.

NOTE: Do not apply excessive force to remove the E/A form because it is easily damaged.






7. Remove the bumper beam.






8. Remove the 8 bolts and disassemble the front bumper beam.






INSTALLATION

Install in the reverse order of removal.

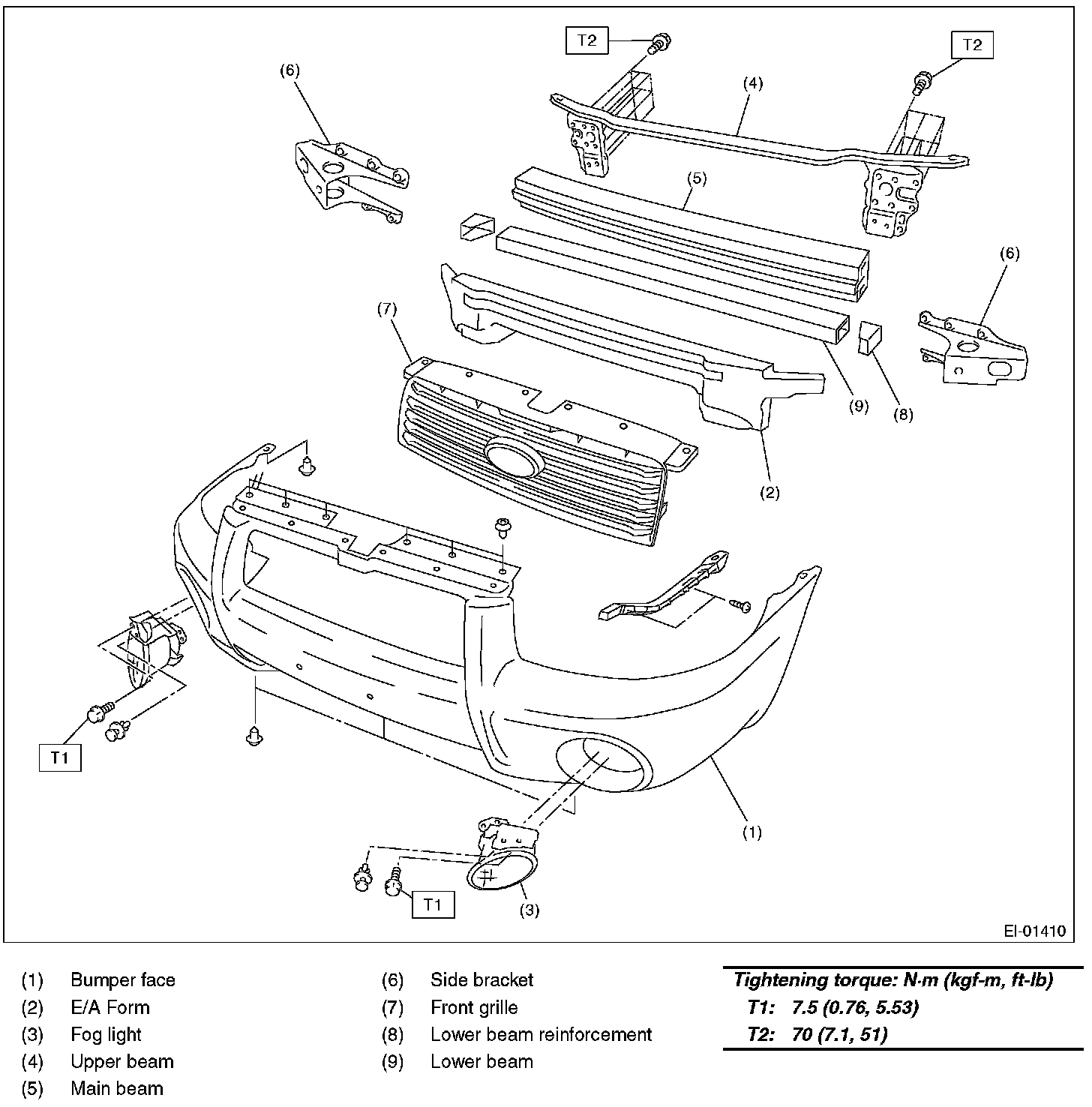

Tightening torque: Refer to "COMPONENT" of "General Description". BUMPER, COMPONENT, General Description.>
