Disassembly and Assembly

DISASSEMBLY

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

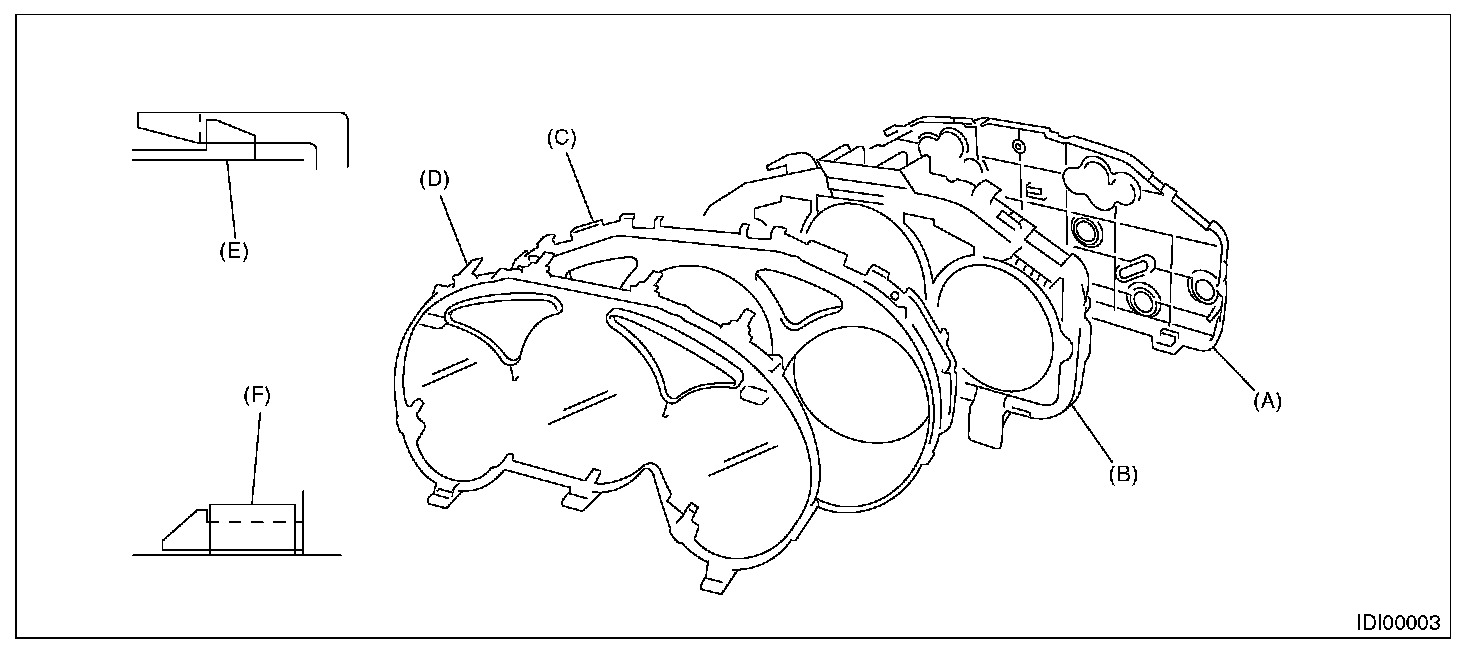

1. Disengage the claw (E) to remove case (B) from back cover (A).




2. Disengage claw (F) to remove meter glass (D) and reflector (C) from the inner case.
3. Pull up claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers.Push out the speedometer (D) and tachometer (E)and water temperature gauge & fuel gauge assembly(F) using the hole (G).




4. Pull up the claw in the center of the combination meter printed circuit (C), and remove the printed circuit from case (H).

Bulb Replacement:




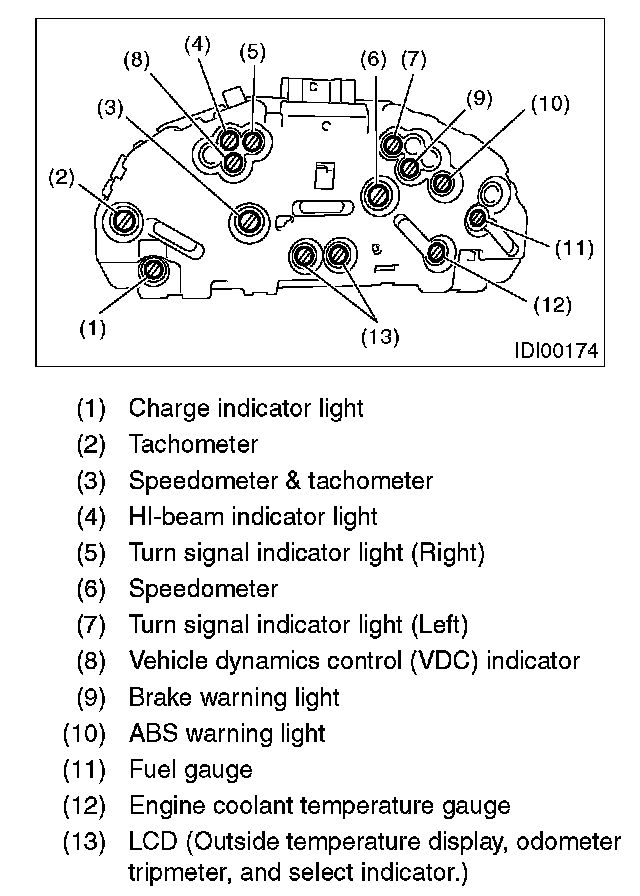

BULB REPLACEMENT

ASSEMBLY
Assemble in the reverse order of disassembly.
