Intake Air Plenum: Service and Repair

Air Intake Chamber

REMOVAL

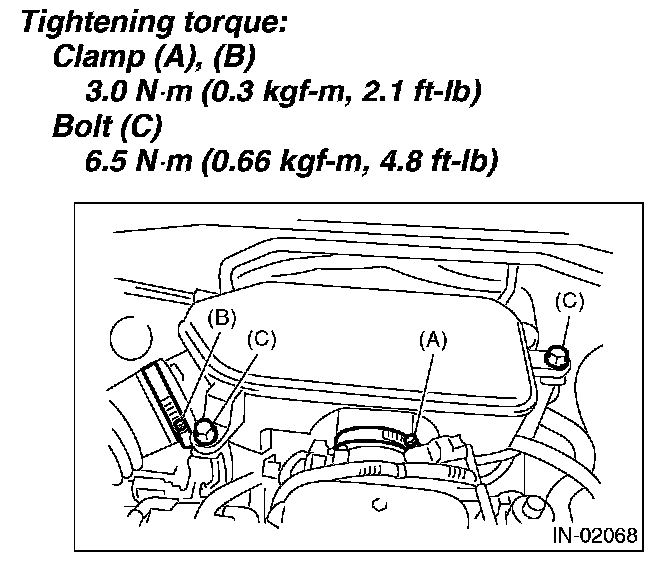

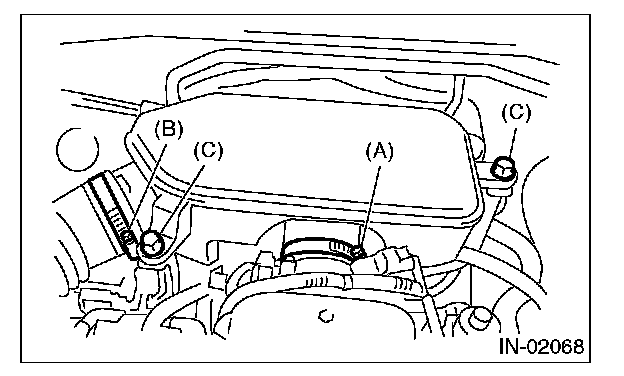

1. Loosen the clamp (A) which connects the air intake chamber and throttle body.
2. Loosen the clamp (B) which connects the air intake chamber and intake duct.

3. Remove the bolts (C) which connects the air intake chamber to the stay.
4. Disconnect the two blow-by hoses, and then remove the air intake chamber.

INSTALLATION

Install in the reverse order of removal.
