Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clearing Diagnostic Trouble Codes and Inspection Mode. List of Diagnostic Trouble Code (DTC)

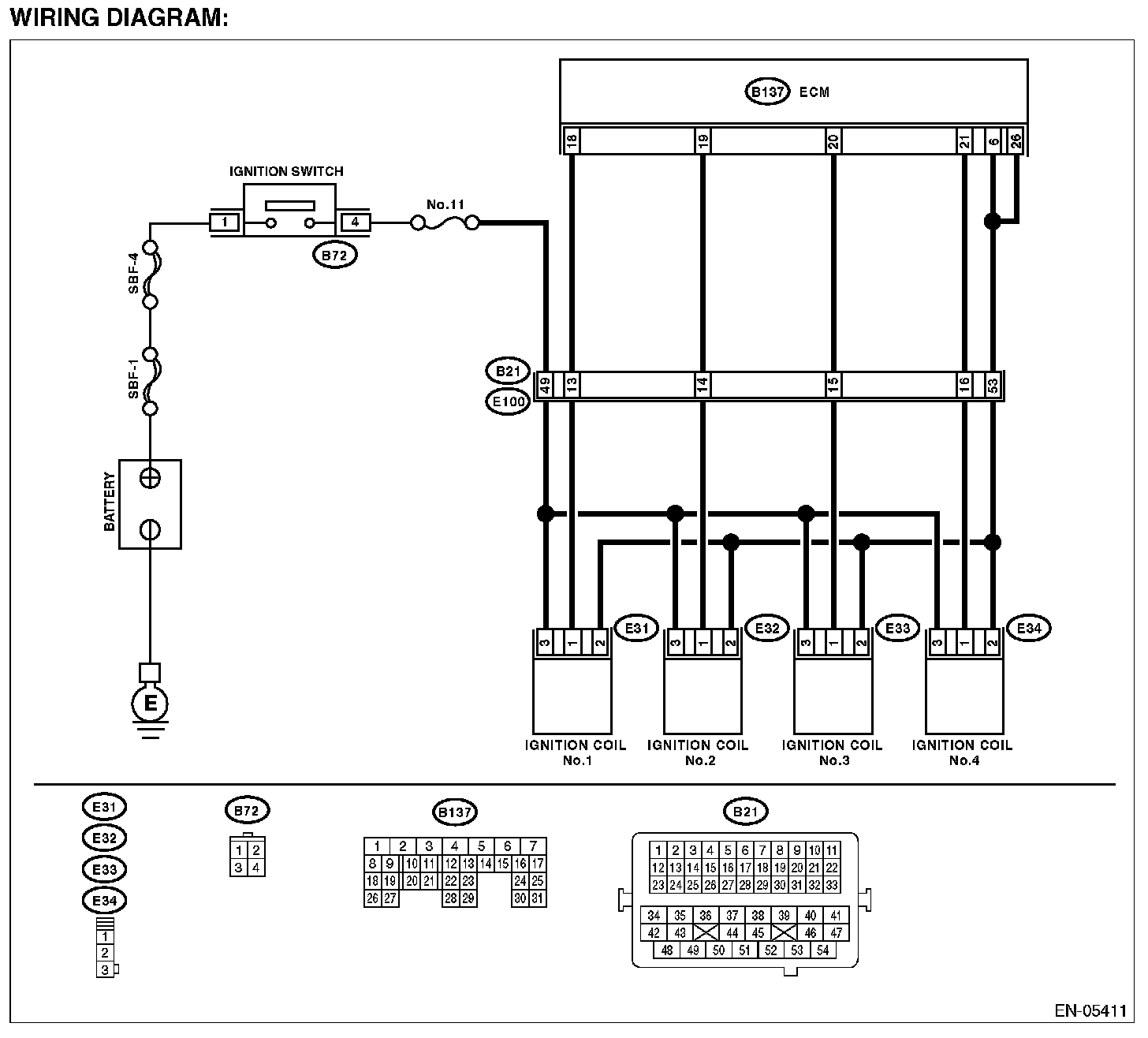

Wiring Diagram:




WIRING DIAGRAM

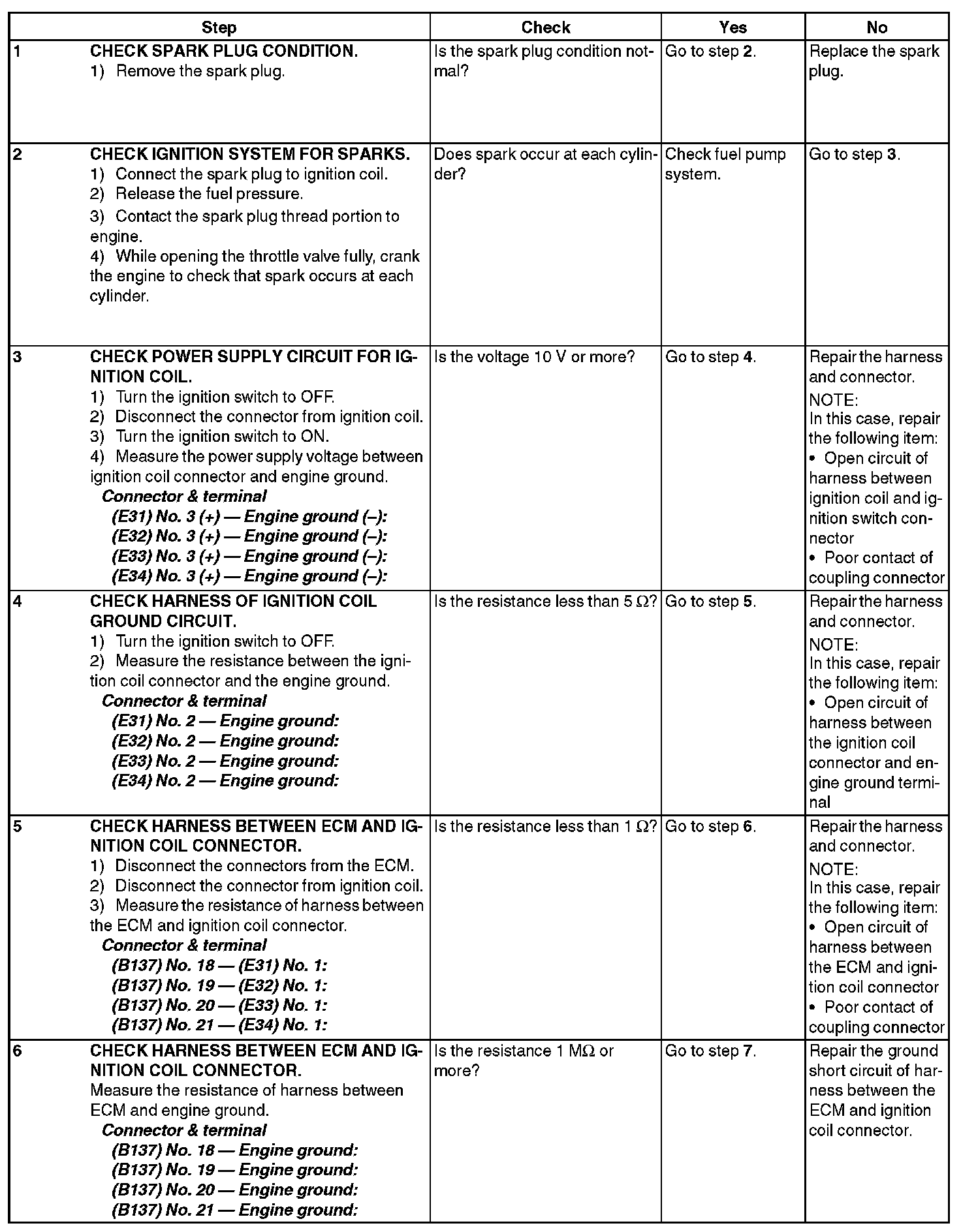

Step 1-6:

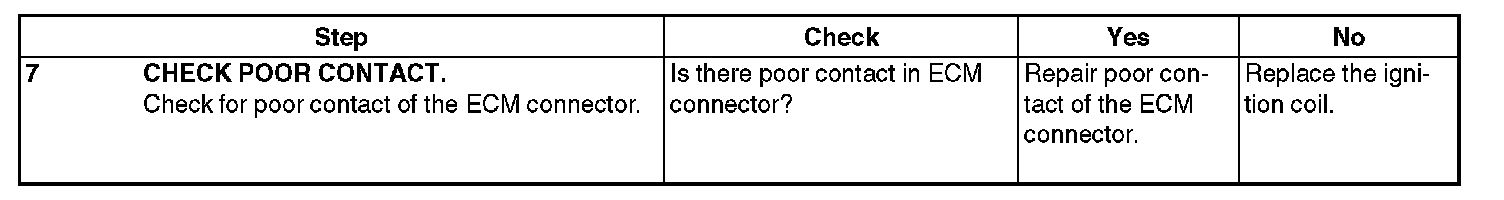

Step 7:
