Function
FUNCTIONOn models equipped with an air conditioning system, the ECM receives signals from the engine coolant temperature sensor, vehicle speed sensor and A/C switch, and based on these signals, the ECU controls the fan speed to Hi or Low.
NOTE: Refer to the Service Manual for operation of each model.

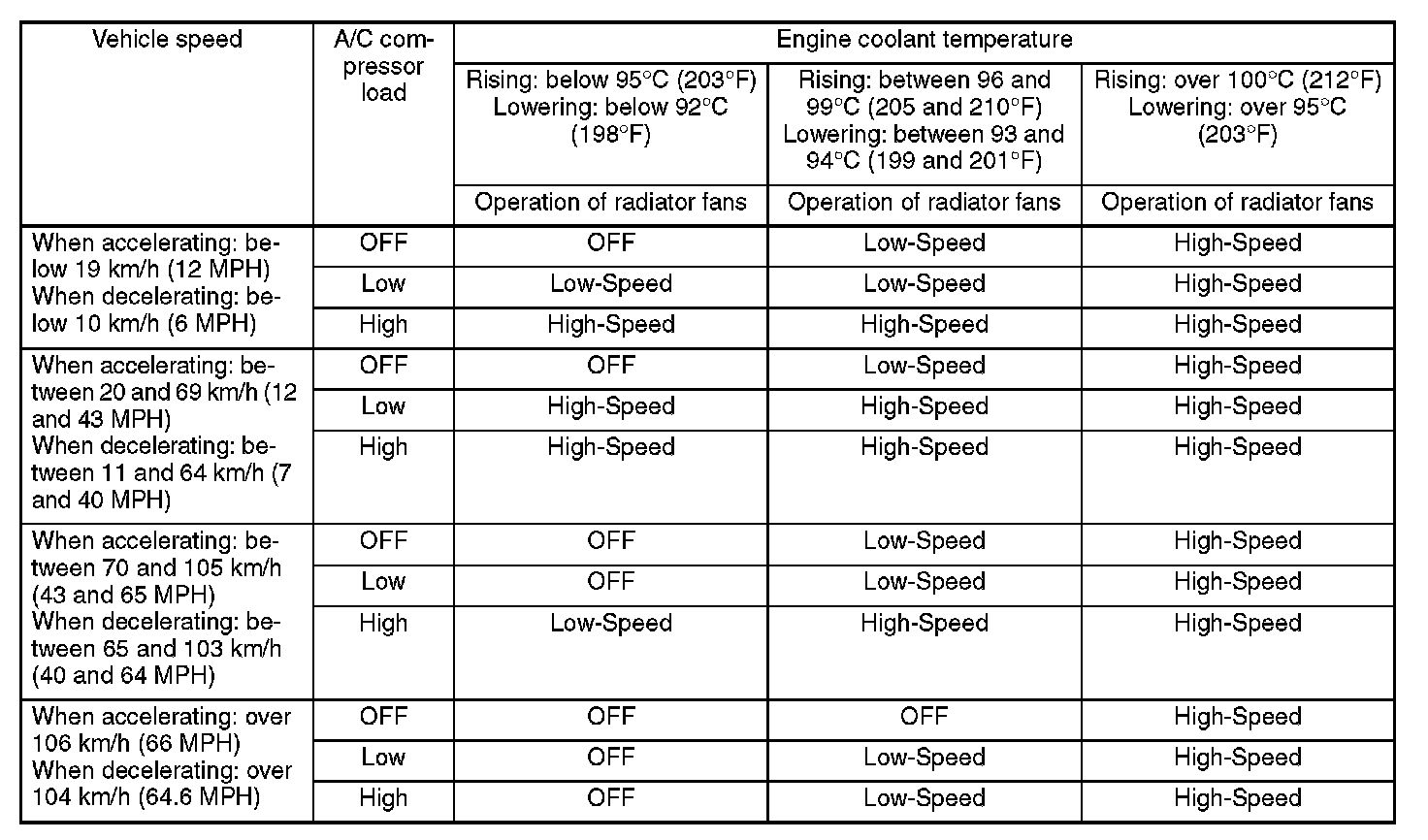

Operation examples
