Heater Duct
Heater DuctREMOVAL 1. FRONT HEATER DUCT 1.
Remove the instrument panel lower cover.
2.

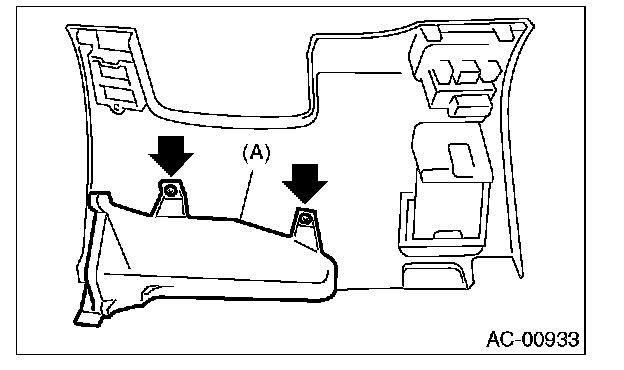

Remove the screws and detach the front heater duct (A).
2. REAR HEATER DUCT 1.
Remove the heater cooling unit.
2.
Remove the front seats.
3.
Remove the front side sill cover.
4.

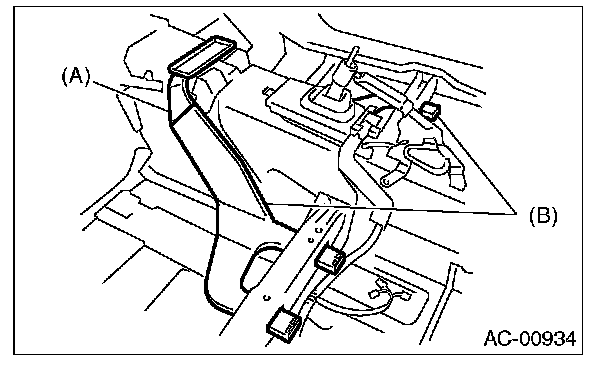

Pull off the floor mat to remove the rear center heater duct (A) and rear heater duct LH, RH (B).
INSTALLATIONInstall in the reverse order of removal.
