Fuel Injector: Service and Repair

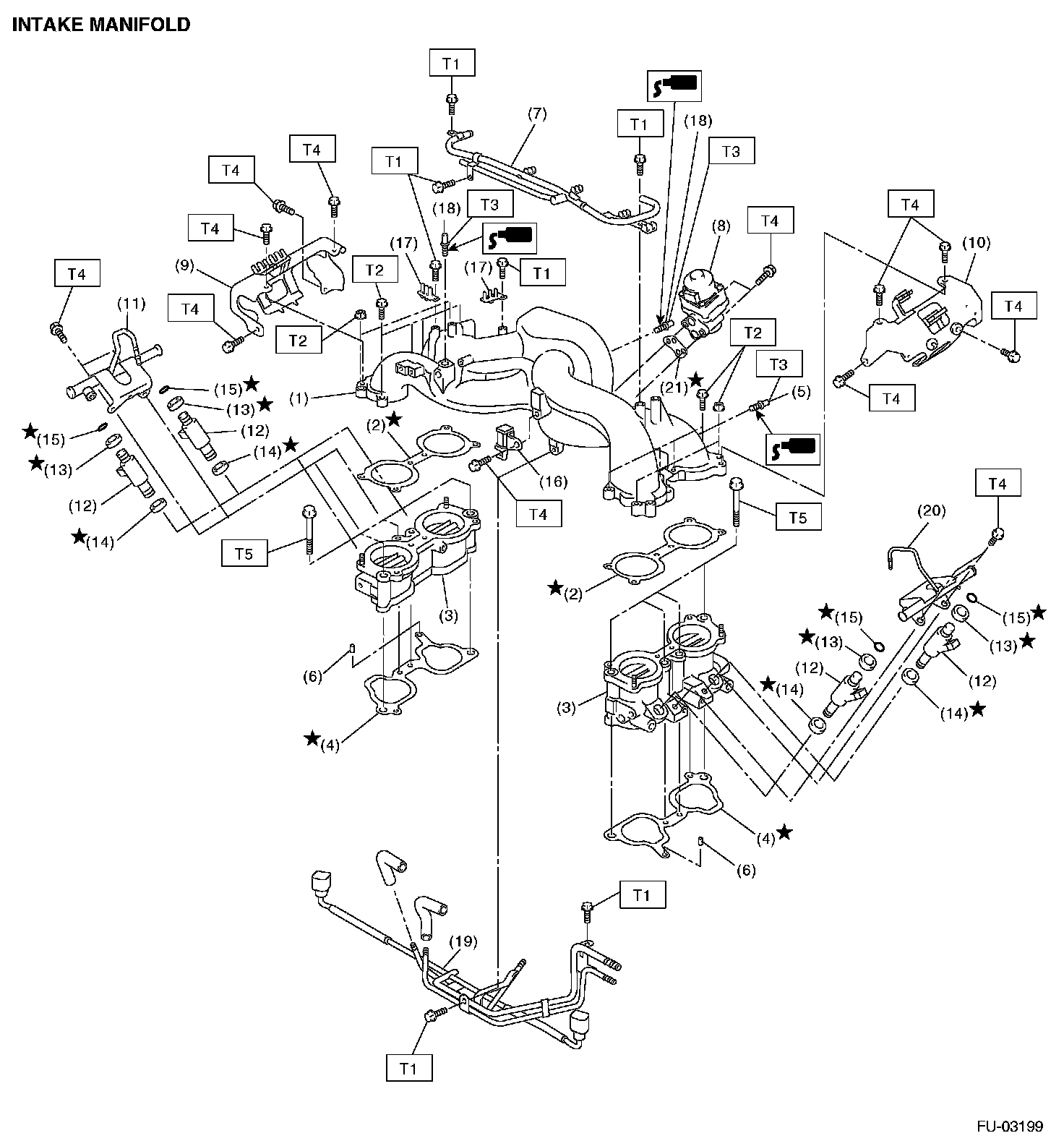

Intake Manifold (Part 1):

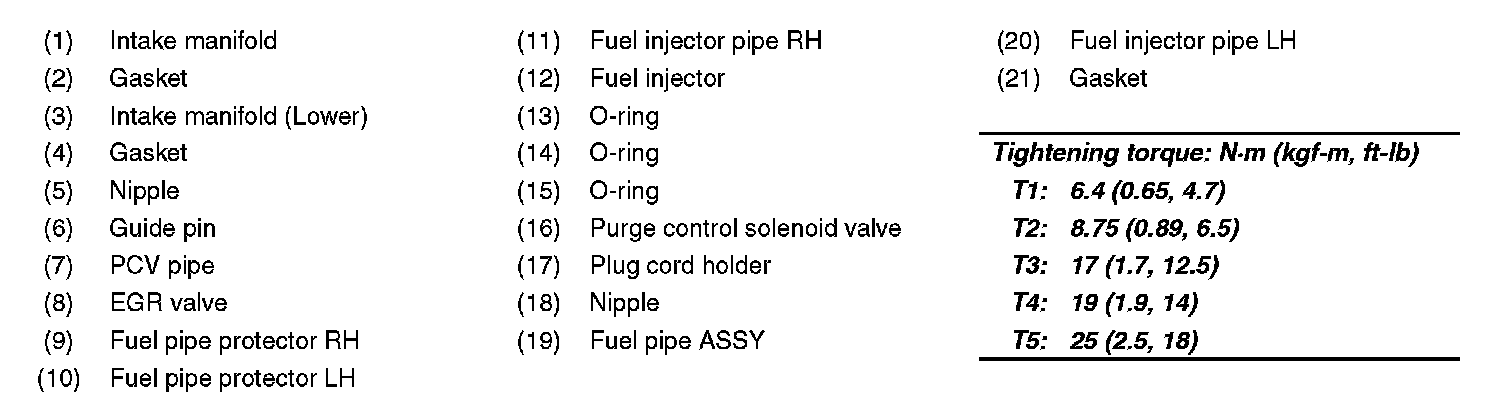

Intake Manifold (Part 2):

Fuel Injector

REMOVAL

1. RH SIDE
1. Release the fuel pressure.

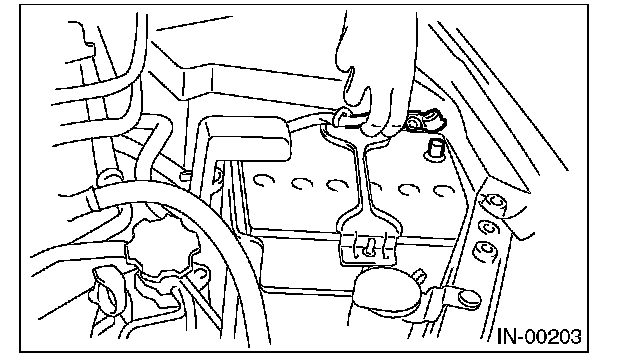

2. Disconnect the ground cable from the battery.
3. Open the fuel filler flap lid, and remove the fuel filler cap.
4. Remove the air intake duct and air cleaner case.
5. Remove the spark plug cords from spark plugs(#1 and #3 cylinders).

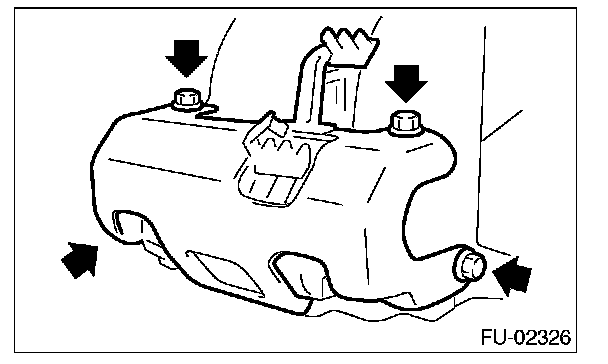

6. Remove the fuel pipe protector RH.

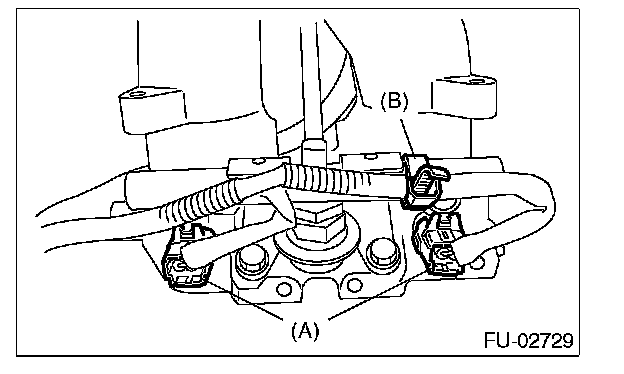

7. Disconnect the connectors (A) from fuel injector.




8. Remove the harness band (B) which holds the engine harness to injector pipe.

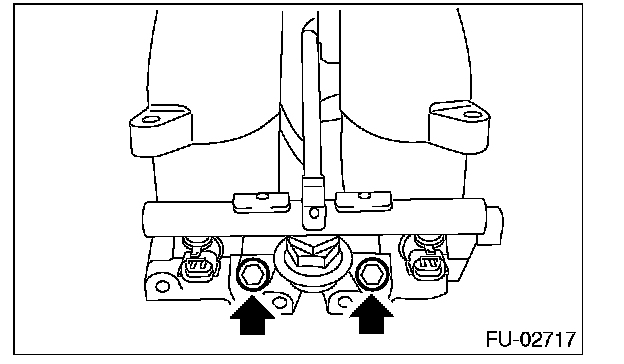

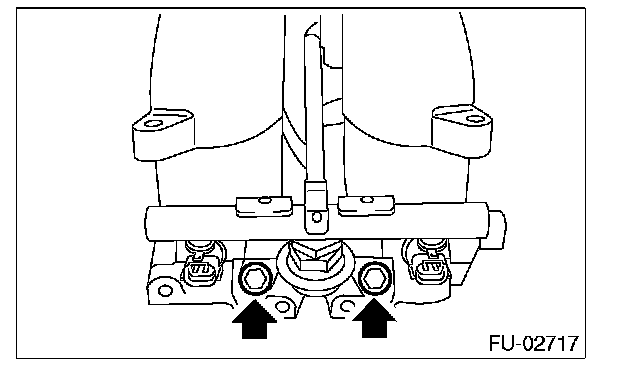

9. Remove the bolt which holds fuel injector pipe onto intake manifold.

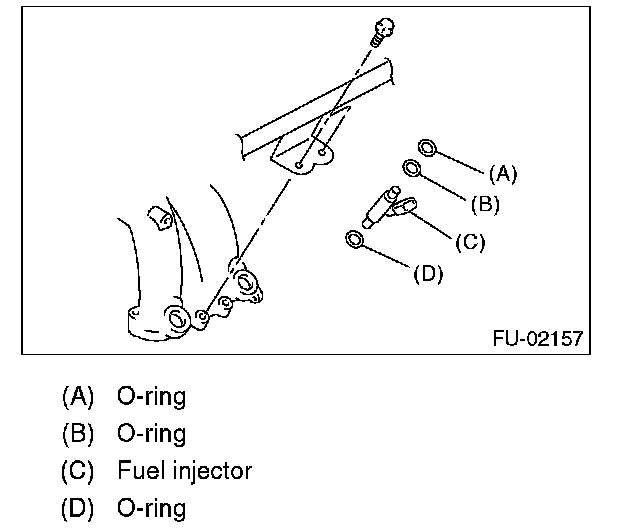

10. Remove the fuel injector while lifting up the fuel injector pipe.

2. LH SIDE
1. Release the fuel pressure.
2. Remove the battery.
3. Open the fuel filler flap lid, and remove the fuel filler cap.
4. Remove the spark plug cords from spark plugs(#2 and #4 cylinders).

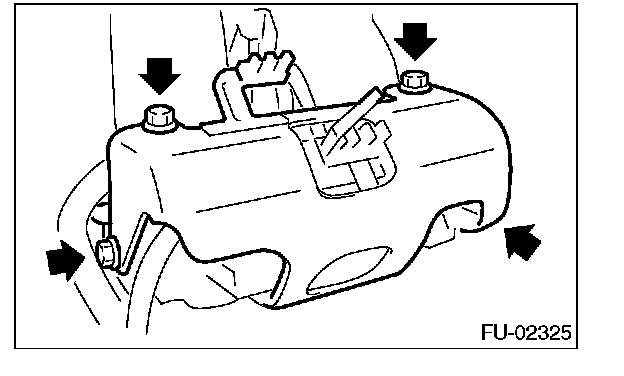

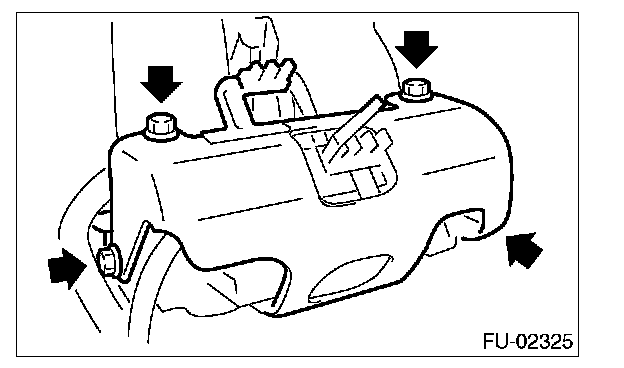

5. Remove the fuel pipe protector LH.
6. Disconnect the connectors (A) from fuel injector.




7. Remove the harness band (B) which holds the engine harness to injector pipe.

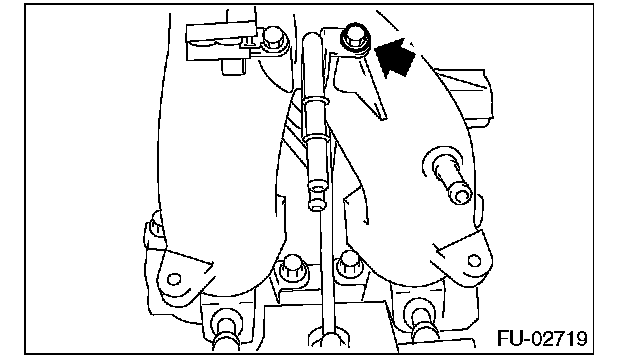

8. Remove the bolt which holds fuel injector pipe onto intake manifold.
9. Remove the fuel injector while lifting up the fuel injector pipe.

INSTALLATION

1. RH SIDE
Install in the reverse order of removal.






NOTE: Use new O-rings.

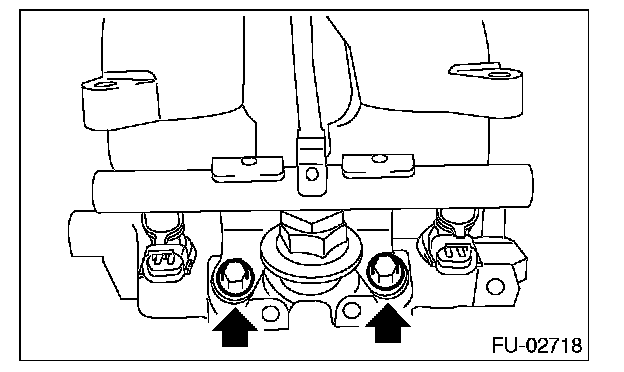

Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)






Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

2. LH SIDE
Install in the reverse order of removal.






NOTE: Use new O-rings.

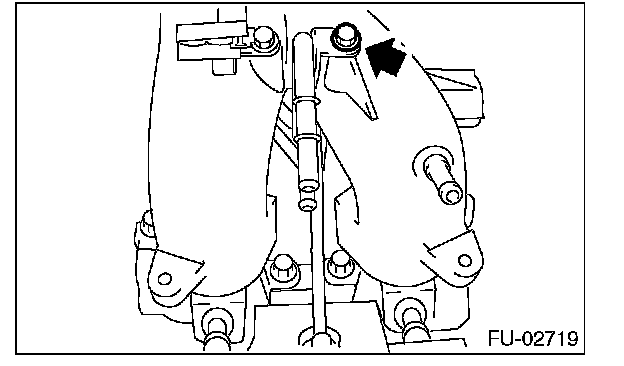

Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

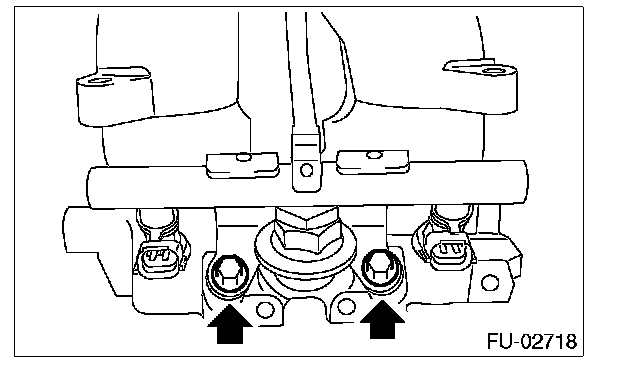

Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)






Tightening torque: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
