Front Grille
FRONT GRILLEREMOVAL 1.

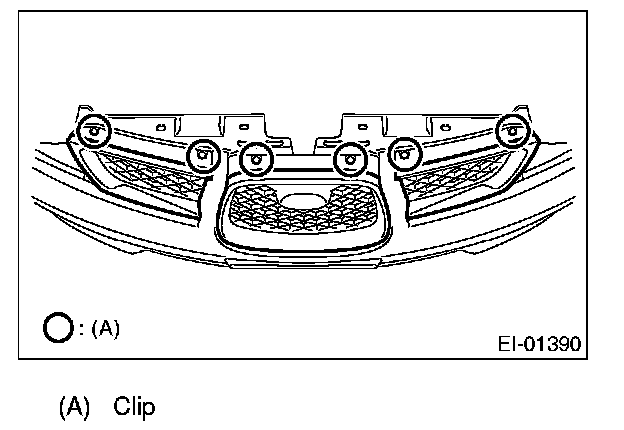

Remove the six clips (A).
2.

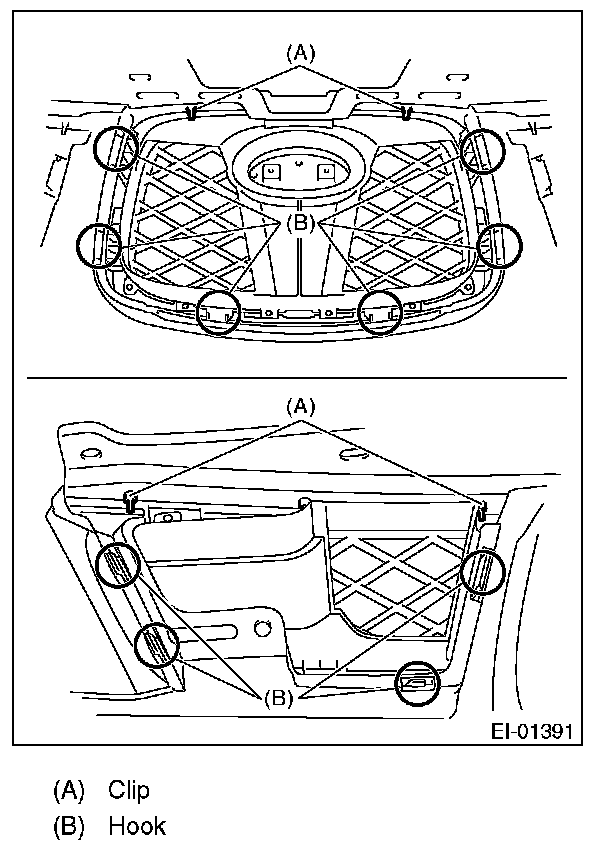

Remove the clip on the upper side and the hooks on the right, left and lower sides, and remove the
grille LH, grille RH and grille center.
3.

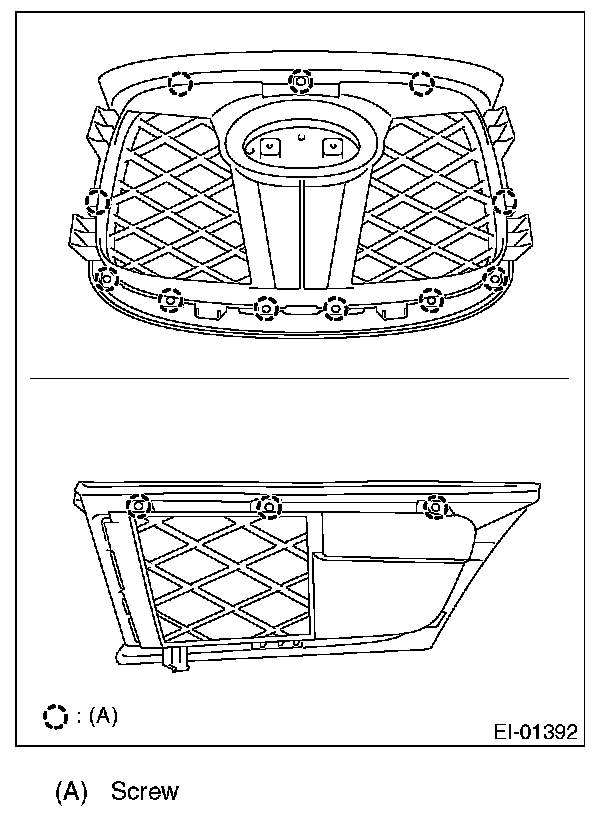

Remove the screw and disassemble front
grille.
INSTALLATIONInstall in the reverse order of removal.
