Control Assembly: Service and Repair
Control UnitREMOVAL 1.
Disconnect the ground cable from the battery.
2.
For manual A/C, remove the mode cable and air mix cable from the each link of the heater unit.
3.
Remove the console front cover.
4.

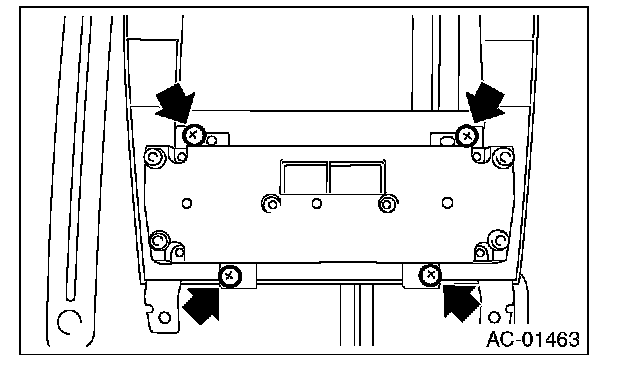

Loosen the four screws on the backside of the center console panel and remove the control unit.
INSTALLATIONInstall in the reverse order of removal.
