Fuel Level Sensor

Fuel Level Sensor

REMOVAL

WARNING: Place "NO FIRE" signs near the working area.

CAUTION: Be careful not to spill fuel.

NOTE: The fuel level sensor is built in fuel pump assembly.

1. Remove the fuel pump assembly.

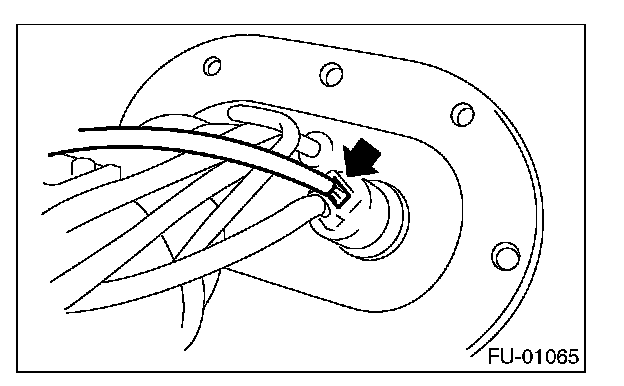

2. Disconnect the connector from fuel pump bracket.

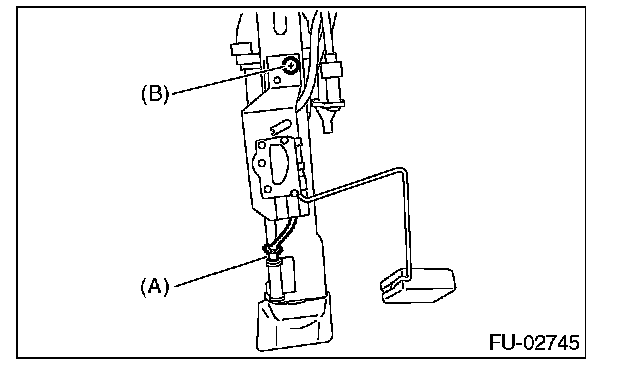

3. Remove the fuel temperature sensor (A).
4. Remove the bolt (B) which installs the fuel level sensor on the mounting bracket.






INSTALLATION
Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque: 4.4 N.m (0.45 kgf.m, 3.3 ft.lb)
