Fuel Sub Level Sensor

Fuel Sub Level Sensor

REMOVAL

WARNING: Place "NO FIRE" signs near the working area.

CAUTION: Be careful not to spill fuel.

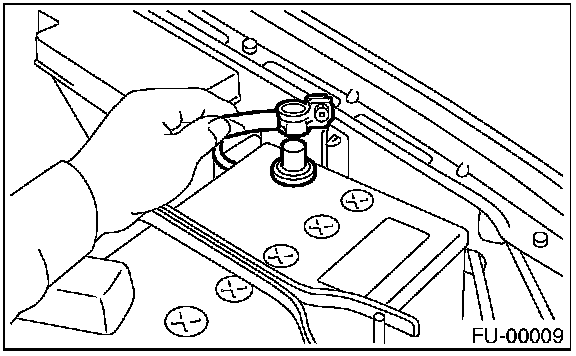

1. Disconnect the ground cable from the battery.






2. Remove the luggage floor mat.

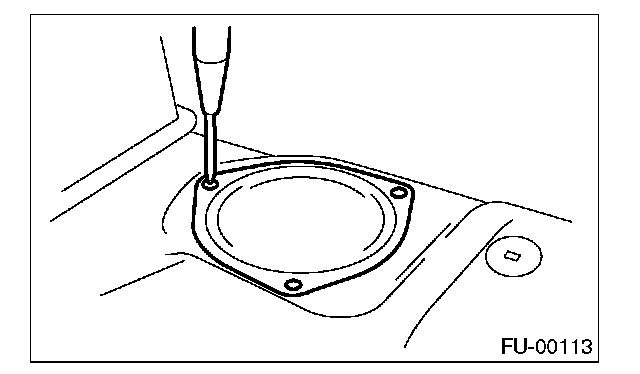

3. Remove the service hole cover.

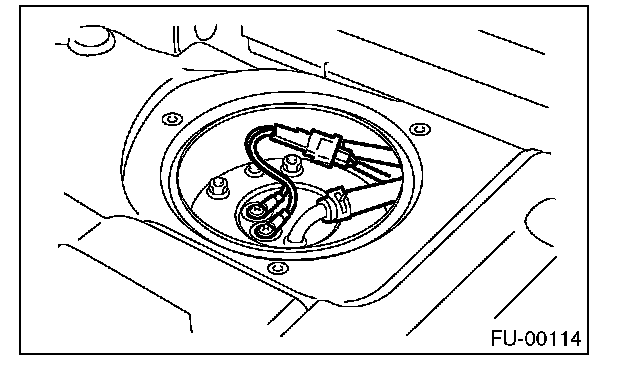

4. Disconnect the connector from the fuel sub level sensor.
5. Disconnect the fuel jet pump hose.

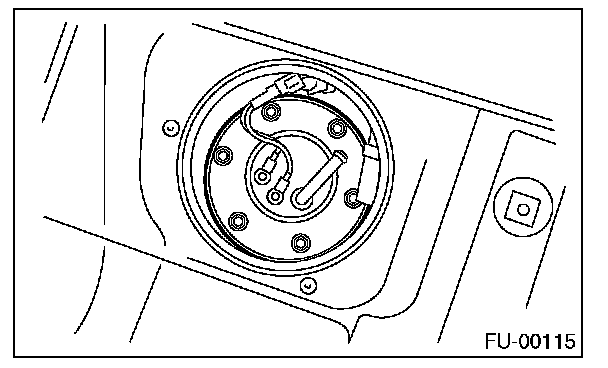

6. Remove the bolts which install fuel sub level sensor on fuel tank.

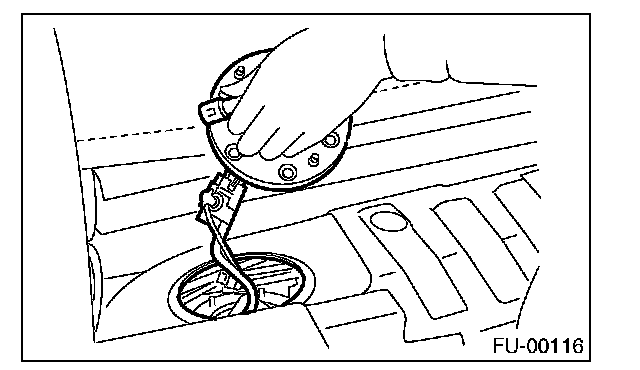

7. Remove the fuel sub level sensor.






INSTALLATION
Install in the reverse order of removal while being careful of the following.
- Make sure the sealing portion is free from fuel or foreign matter before installation.

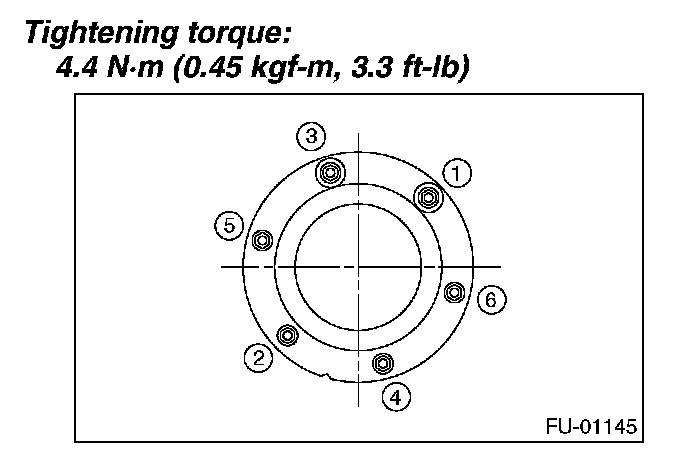

- Tighten the nuts to the specified torque in the order as shown in the figure.

NOTE: Use a new gasket.
