System Specifications
Cylinder headSurface warpage limit 0.035 mm (0.0014 in)
Grinding limit 0.3 mm (0.012 in)
Standard height 127.5 mm (5.02 in)
Cylinder head bolts
Tighten all bolts to 29 N-m (3.0 kgf-m, 21.4 ft-lb) in alphabetical sequence.
Tighten all bolts to 69 N-m (7.0 kgf-m, 50.9 ft-lb) in alphabetical sequence.
Loosen all the bolts by 180° in the reverse order of installing, and loosen them further by 180°.
Tighten all bolts to 49 N-m (5.0 kgf-m, 36.1 ft-lb) in alphabetical sequence.
Tighten all bolts by 80 to 90° in alphabetical sequence.
Tighten all bolts by 40 to 45° in alphabetical sequence.
Further tighten the bolts (a) and (b) by 40 - 45°
Camshaft caps

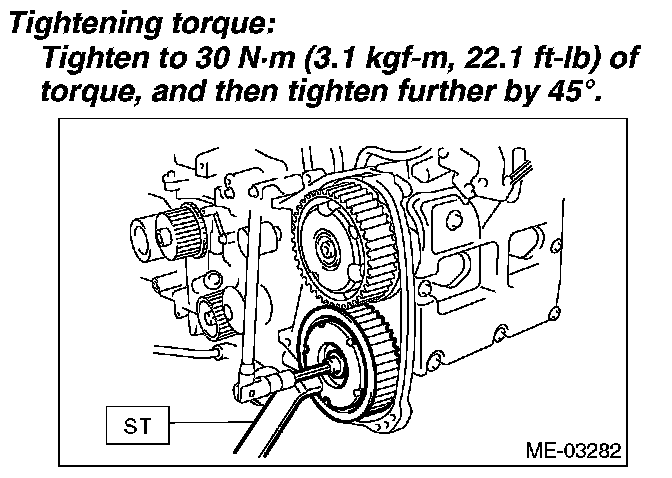

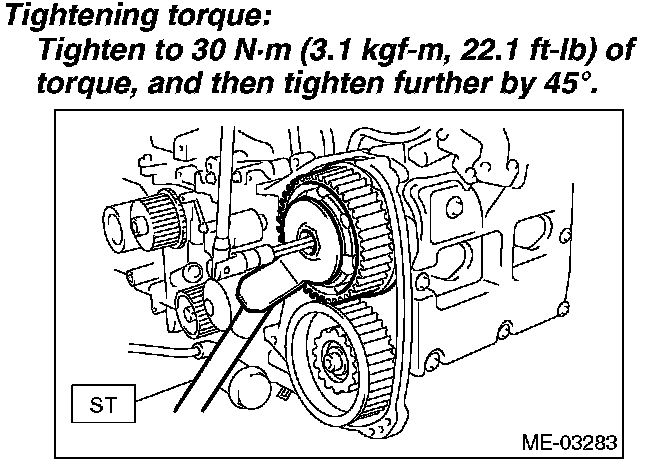

Camshaft sprockets
