System Specifications
Cylinder headSurface warpage limit 0.035 mm (0.0014 in)
Grinding limit 0.3 mm (0.012 in)
Standard height 127.5 mm (5.02 in)
Cylinder head bolt tightening
Tighten all bolts to 29 N-m (3.0 kgf-m, 21.4 ft-lb) in alphabetical order.
Further tighten all bolts to 69 N-m (7.0 kgf-m, 50.9 ft-lb) in alphabetical order.
Loosen all the bolts by 180 degrees in the reverse order of installing, and loosen them further by 180 degrees.
Tighten all bolts to 49 N-m (5.0 kgf-m, 36.1 ft-lb) in alphabetical order.
Tighten all bolts by 80 to 90 degrees in alphabetical order.
Tighten all bolts by 40 to 45 degrees in alphabetical order.
Further tighten the bolts (A) and (B) by 40 - 45 degrees.

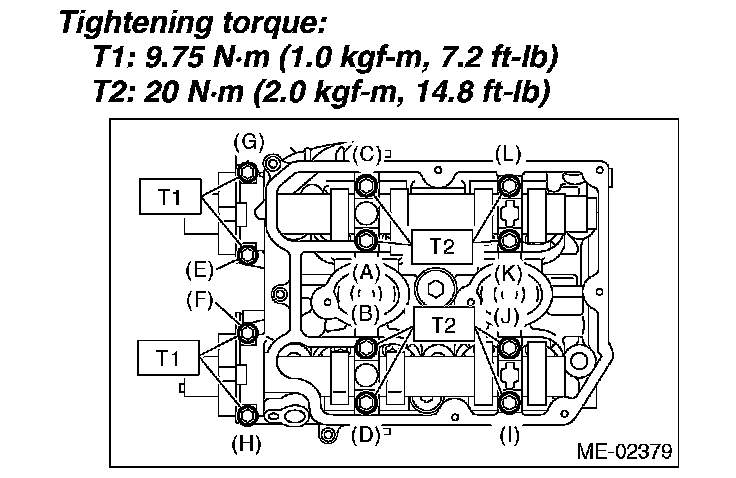

Camshaft bearing cap

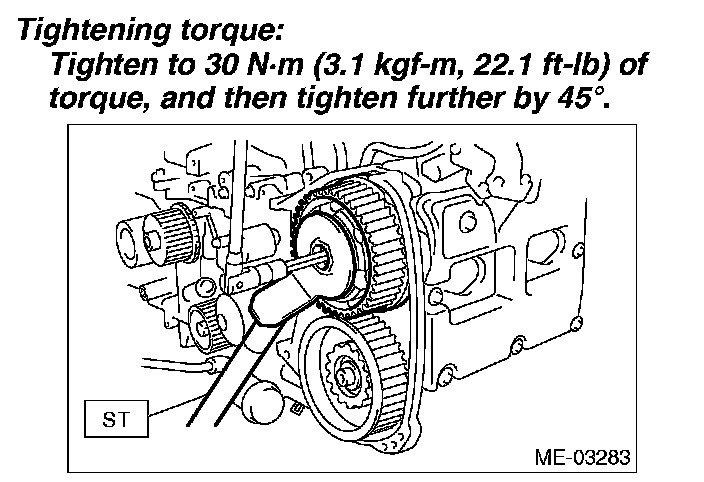

Camshaft sprocket
