Drive Belt: Description and Operation

Stretch Type Belt (From 08MY)

GENERAL

- Stretch type belt uses elastic material in its core, resulting in eliminating a tensioner pulley and in a weight reduction.
- The stretch type belt eliminates the need to adjust tension of the belt.

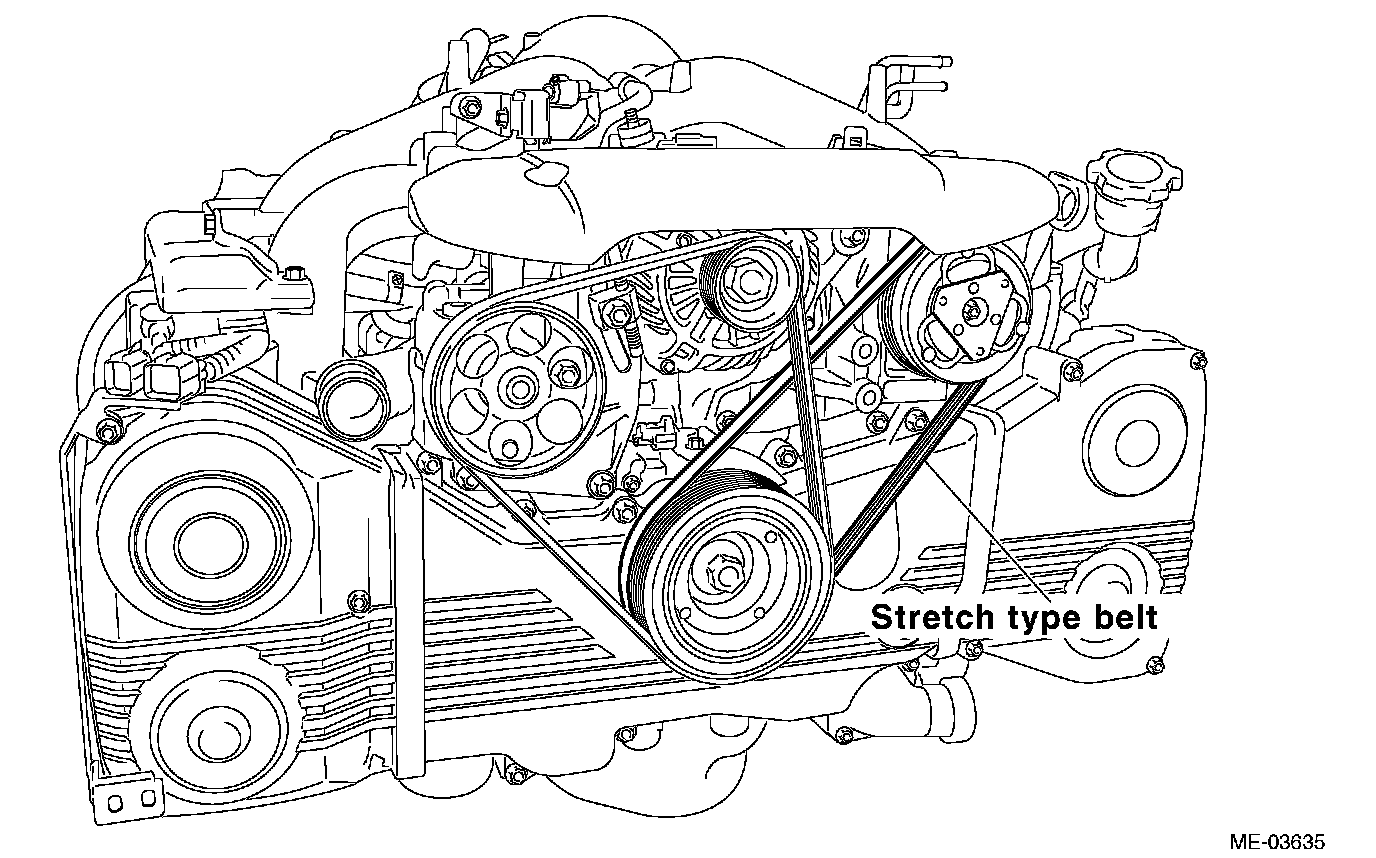

STRUCTURE

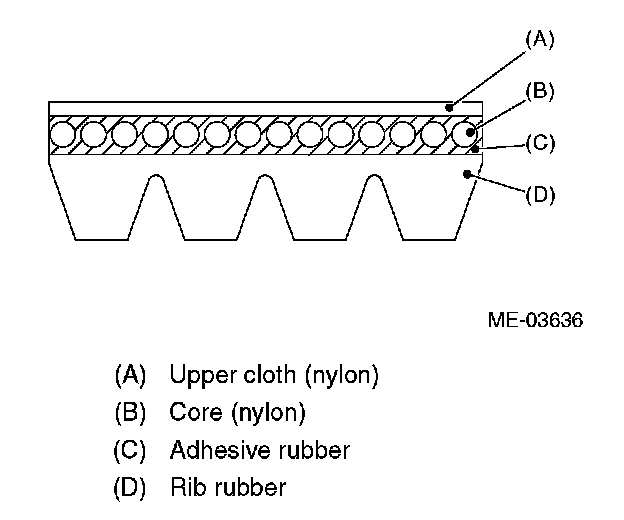

The stretch type belt is built as shown in the following figure providing the elastic feature.
