Shift Interlock

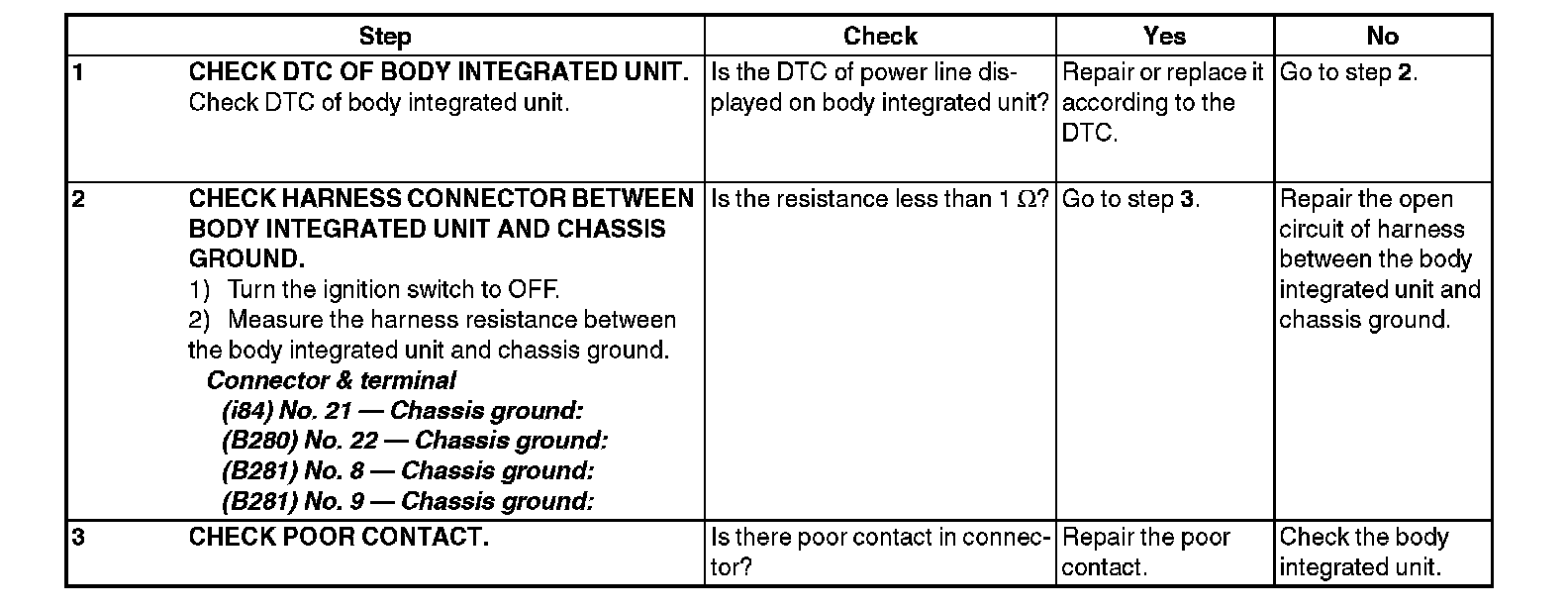

BODY INTEGRATED UNIT POWER SUPPLY AND GROUND CIRCUIT




Step 1-Step 3:

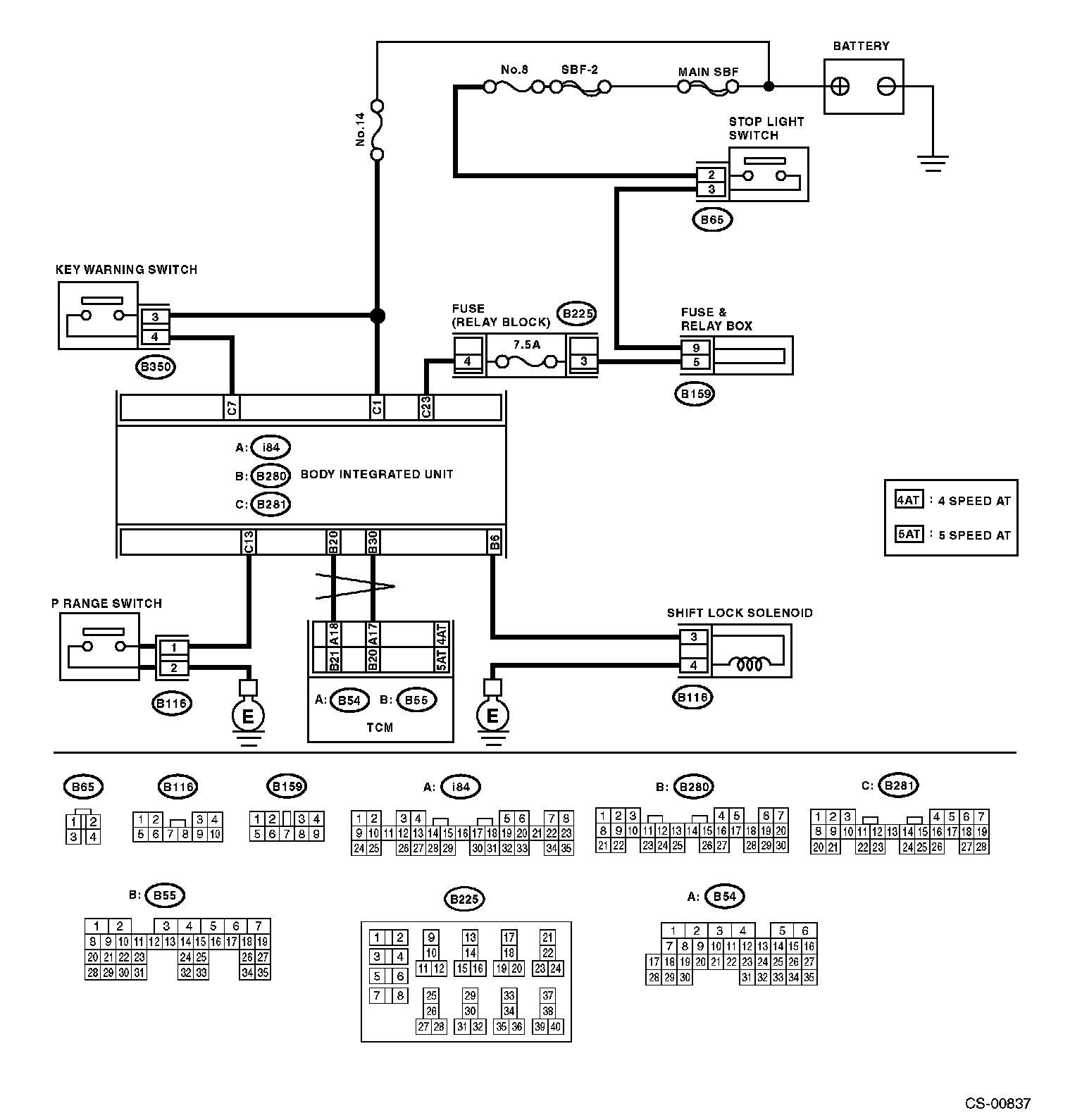

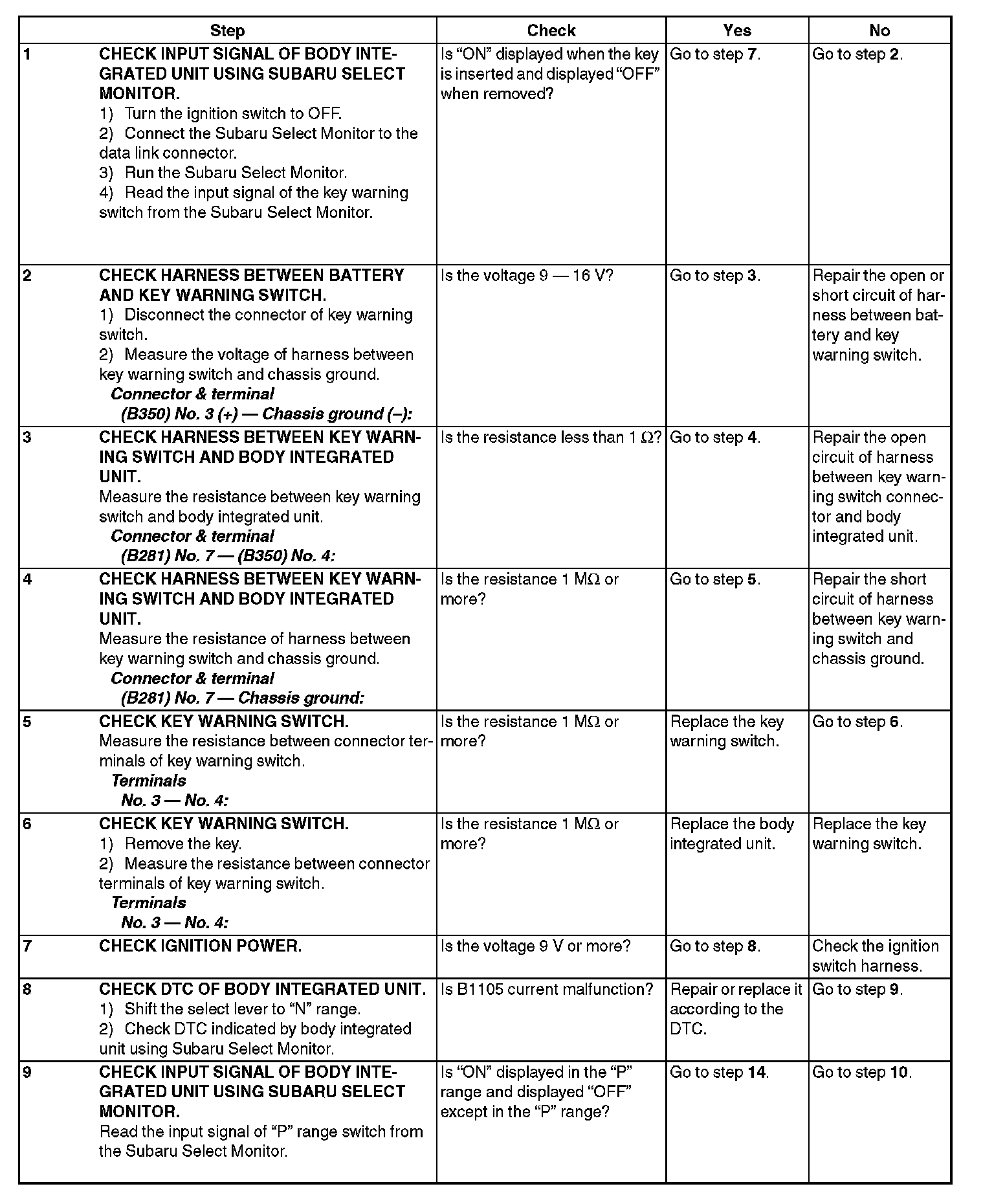

SELECT LEVER CANNOT BE LOCKED

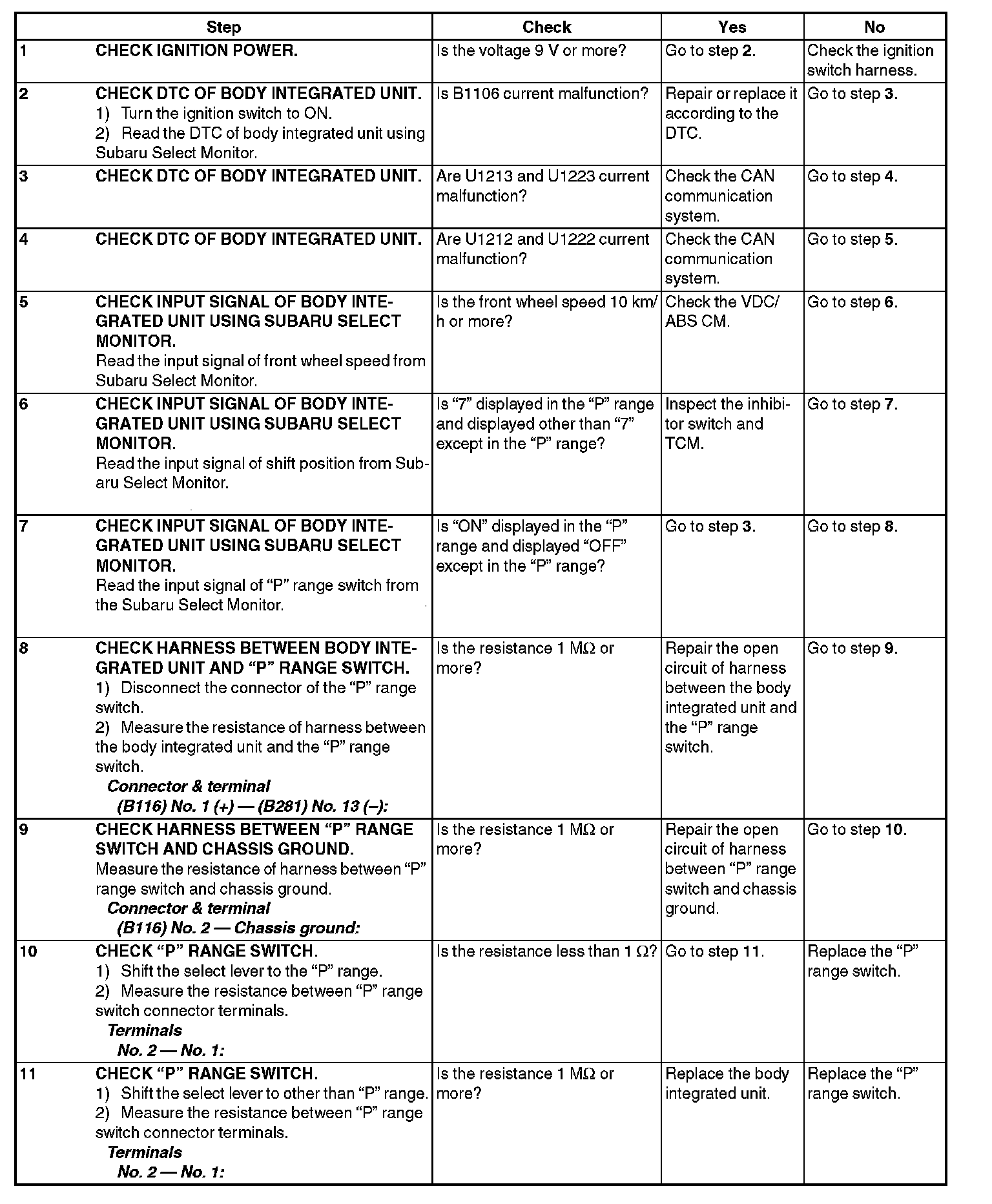

Step 1-Step 9:

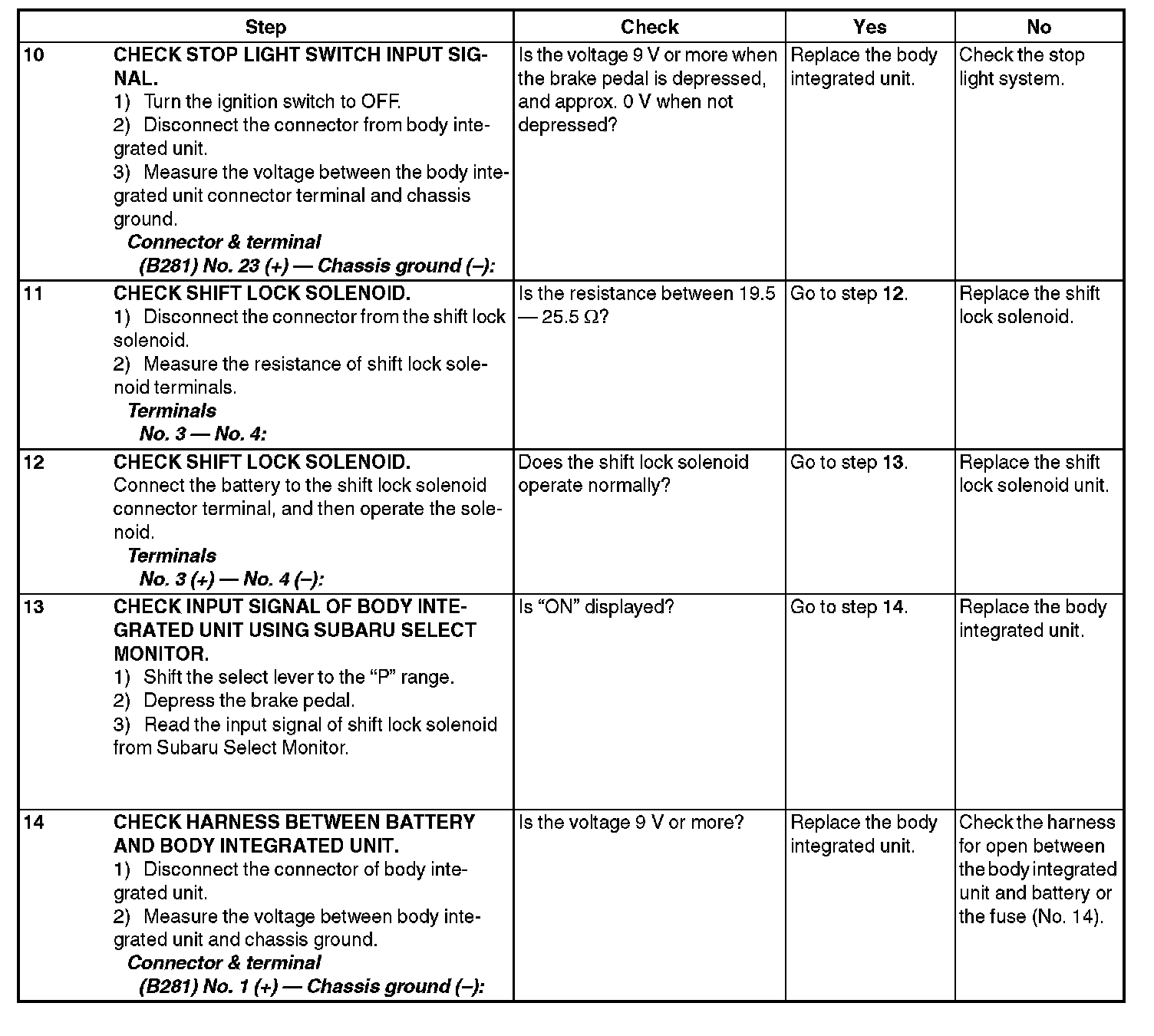

Step 10-Step 14:

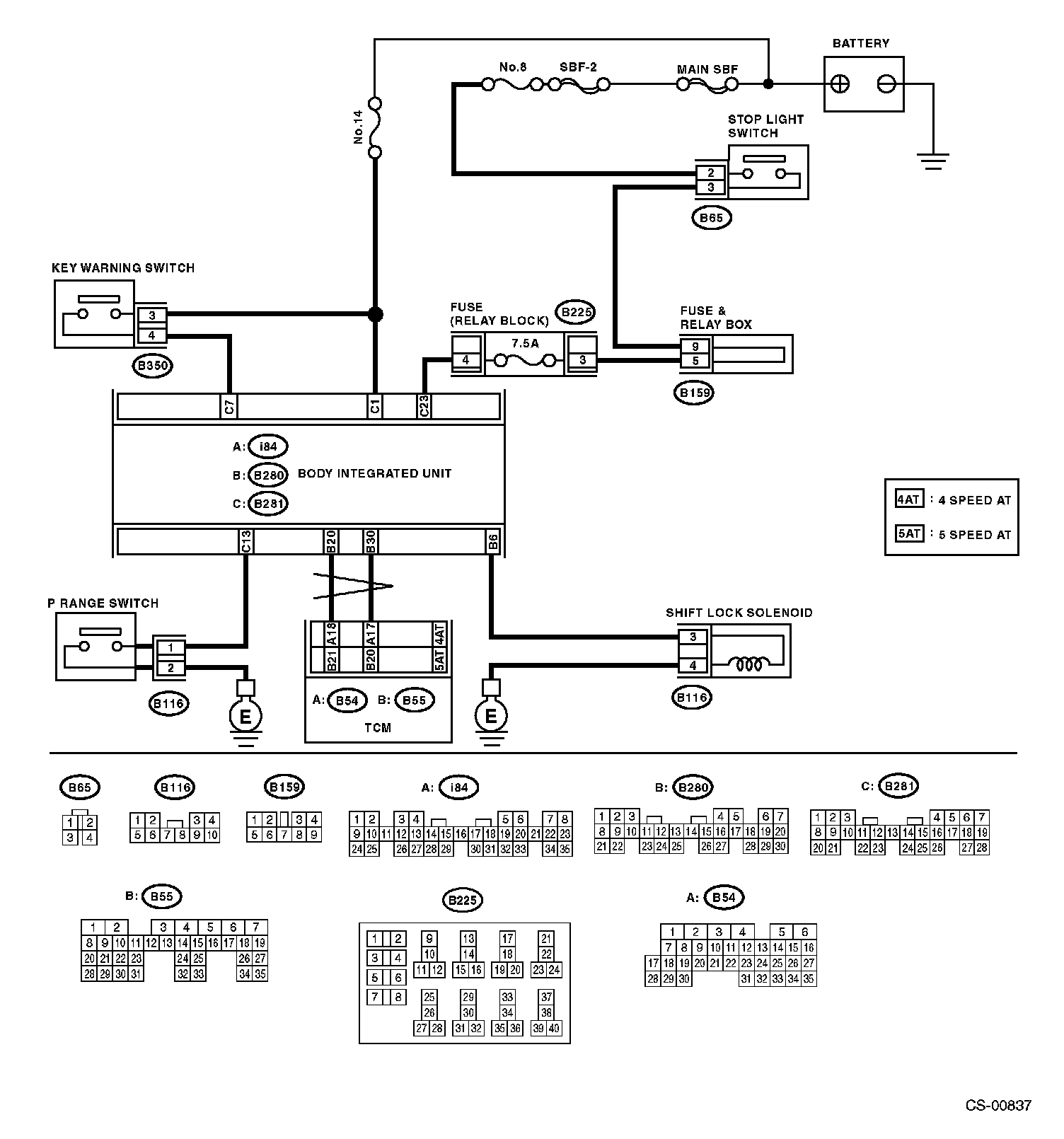

SHIFT LOCK OF SELECT LEVER CANNOT BE RELEASED

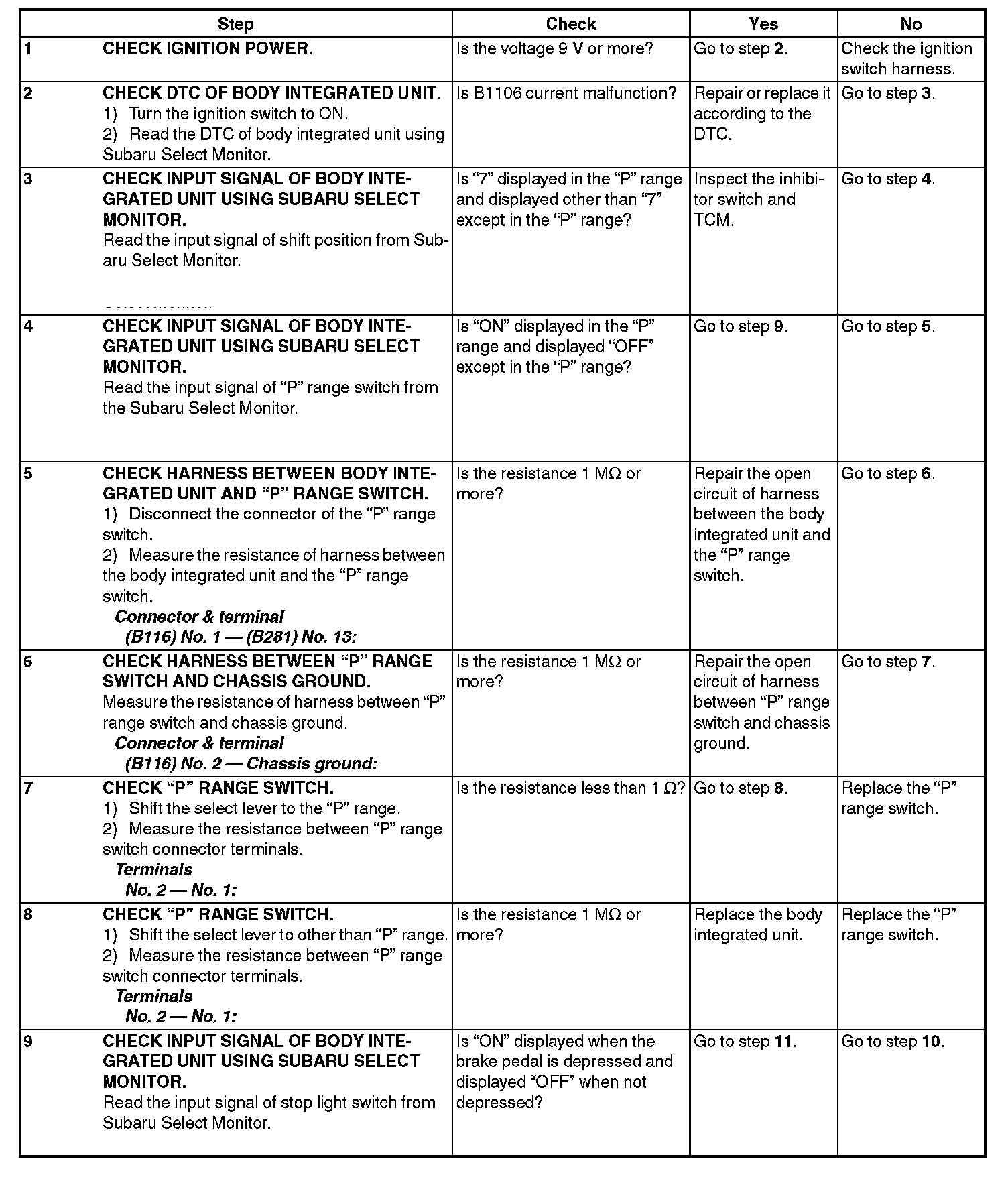

Step 1-Step 11:

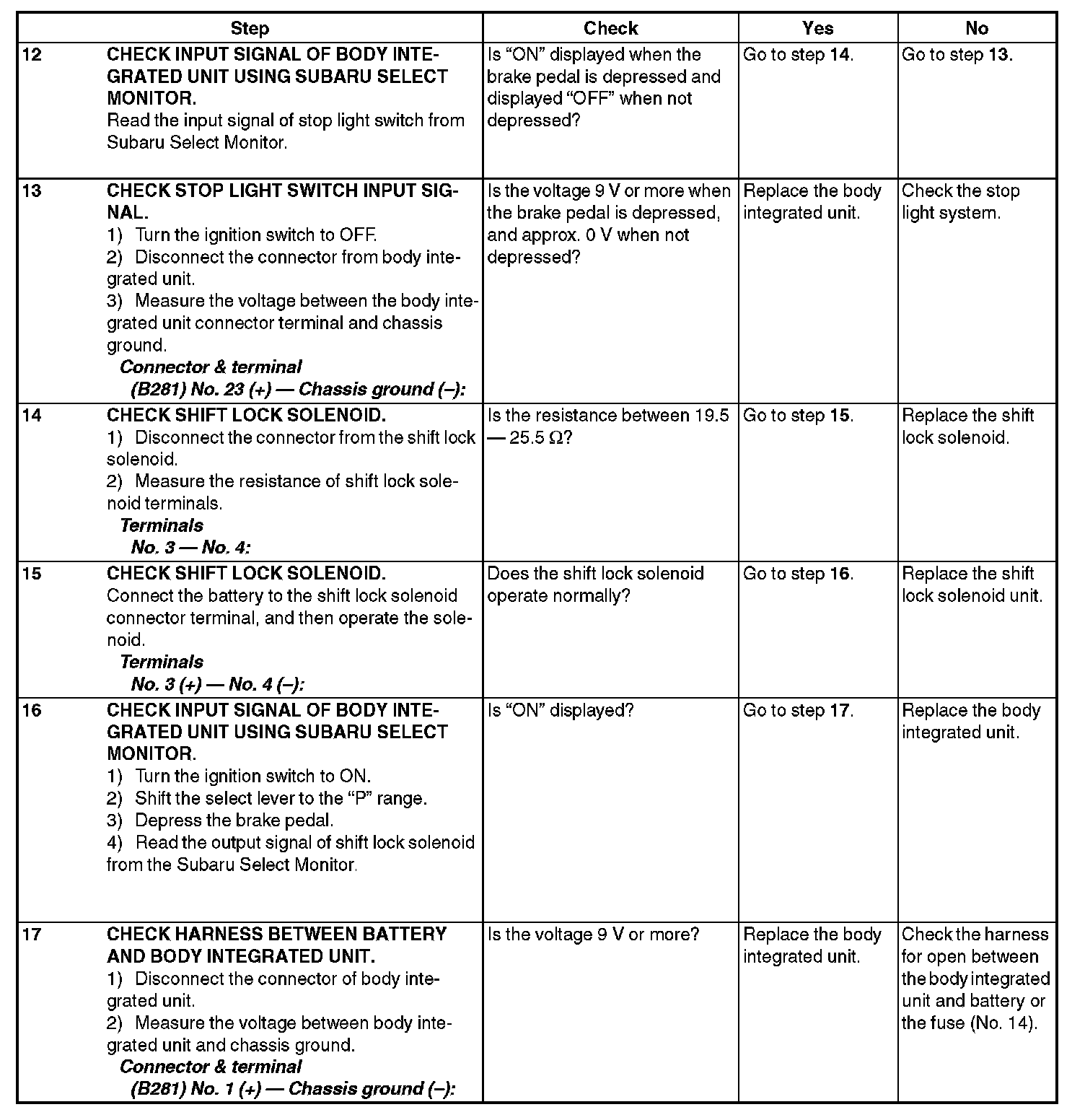

Step 12-Step 17:

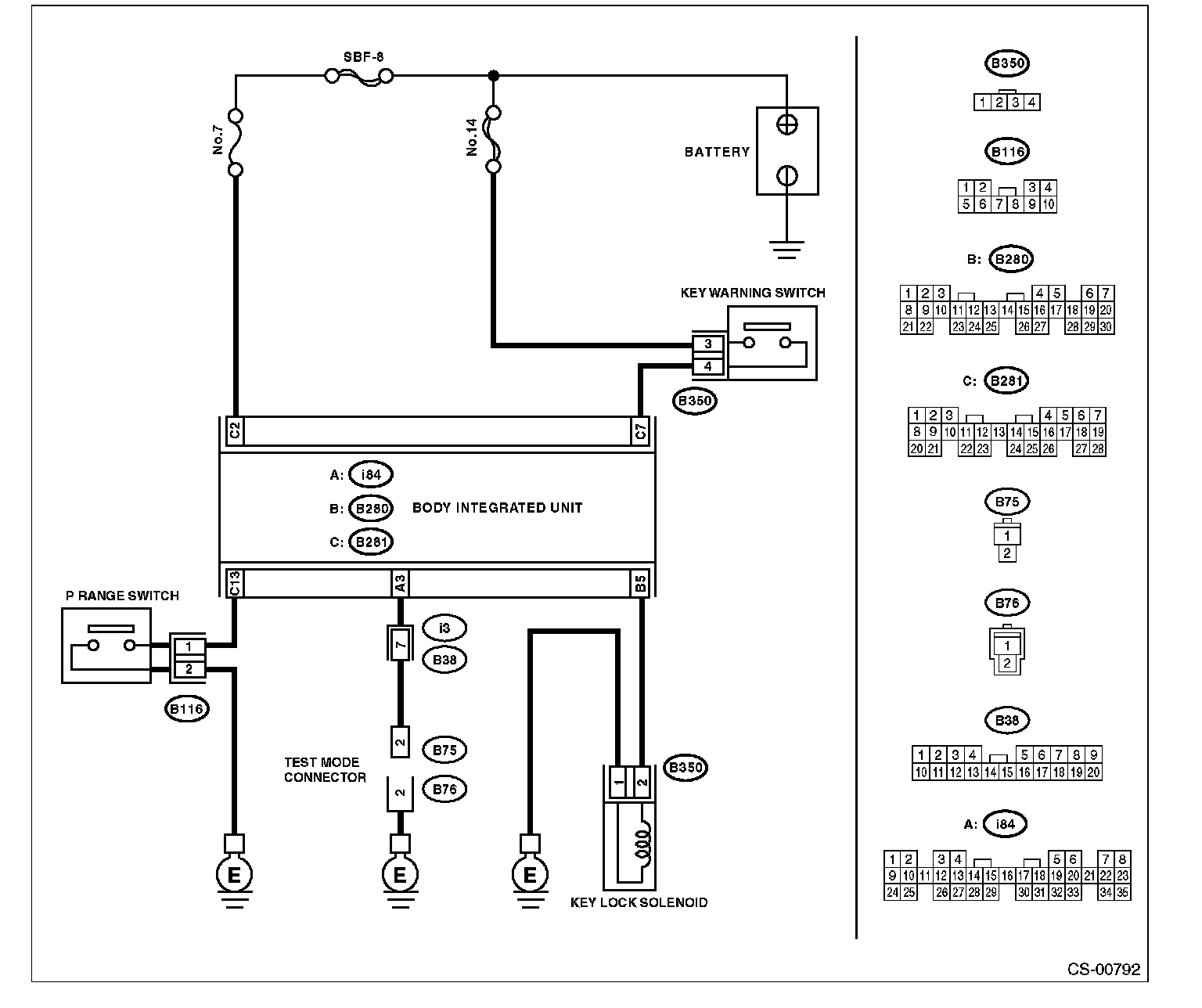

KEY INTERLOCK CANNOT BE LOCKED OR RELEASED




Step 1-Step 7:

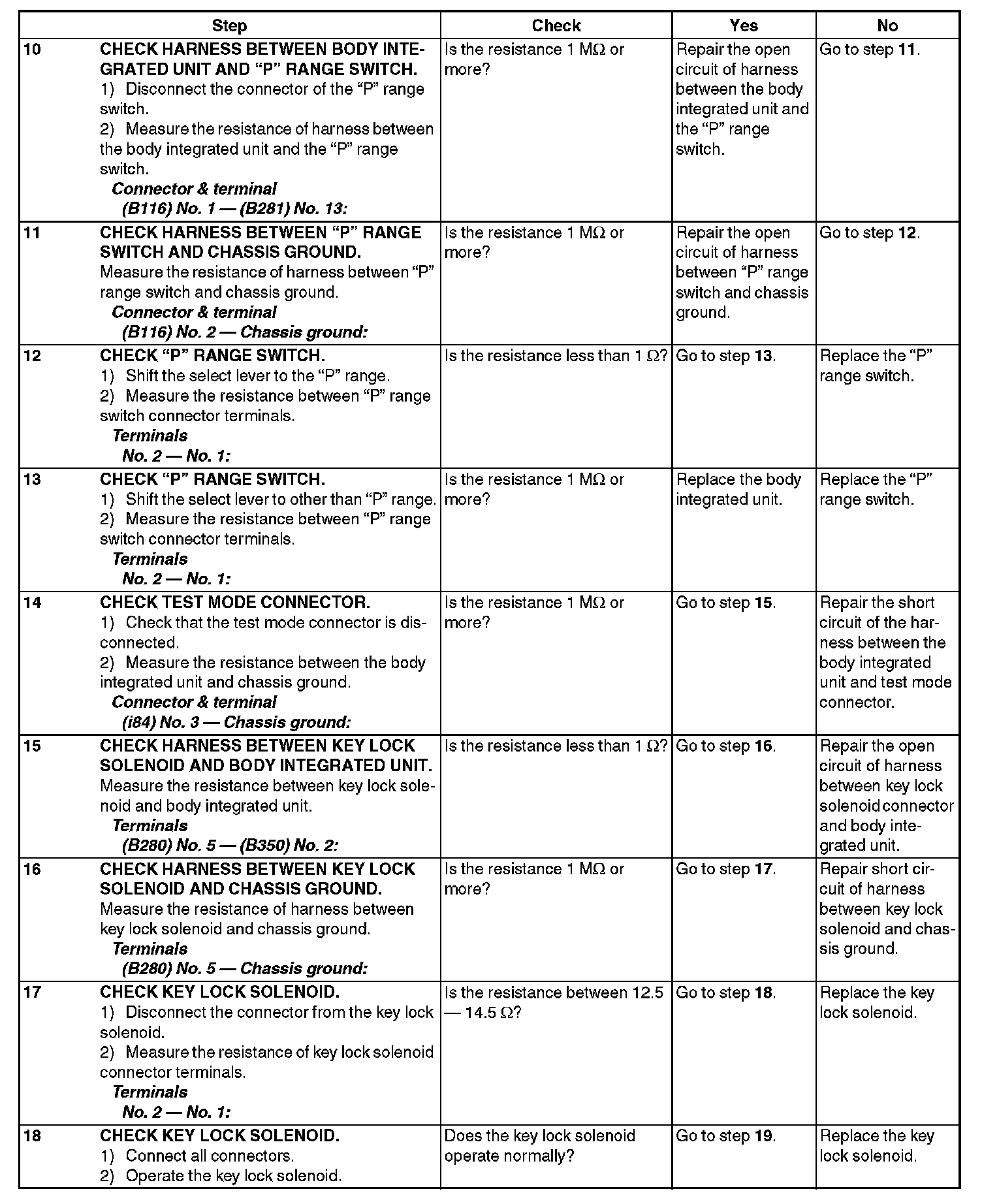

Step 10-Step 18:




Step 19-Step 20:
