Navigation Module: Service and Repair
Navigation BodyREMOVAL 1.
Disconnect the ground cable from the battery.
2.
Remove the center panel.
3.

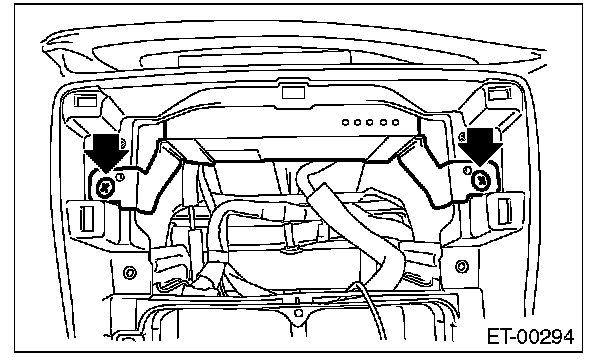

Remove the fitting screws, and slightly pull the audio out from the center console.
4.
Disconnect the harness connectors and antenna feeder cord.
5.
Remove the audio.
6.
Remove the mounting screws and detach the satellite radio unit.
INSTALLATIONInstall in the reverse order of removal.
