Function Setting (Customize)

Function Setting (Customize)

OPERATION

1. WITHOUT SUBARU SELECT MONITOR

NOTE: Applicable to models with center display.

1. Press "INFO" switch on the center display to display the information display screen.
2. Select "SET" on the touch panel displayed in the upper right corner of the center display.
3. Select an item on the touch panel "Keyless", "Each function", "Security alarm".
4. On the touch panel of the item for the setting to be changed, change the setting.
5. Return to the information display screen to complete the setting.

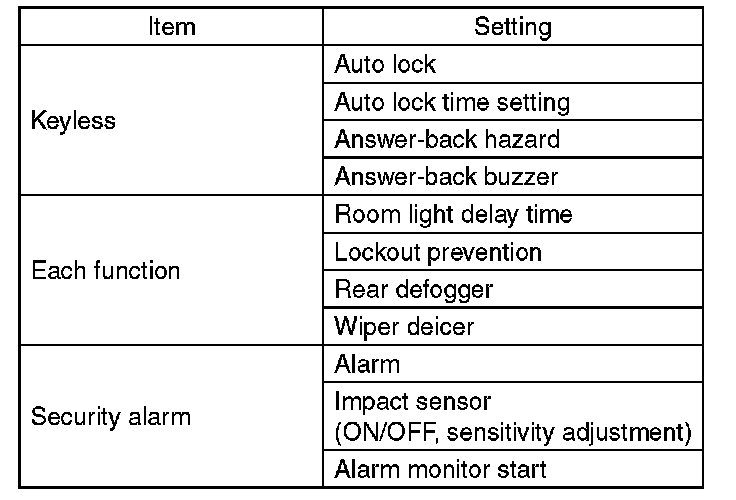

Item list for setting functions






2. WITH SUBARU SELECT MONITOR
For detailed procedures of function setting (ECM customizing), refer to "SUBARU SELECT MONITOR". Ref. to FUNCTION SETTING (ECM CUSTOMIZING), OPERATION, Subaru Select Monitor. Subaru Select Monitor
