Front Fender: Service and Repair

FRONT FENDER

REMOVAL

1. Disconnect the ground cable from the battery.
2. Remove the side sill spoilers.
3. Remove the front bumper.
4. Remove the headlight assembly.
5. Remove the mud guard.

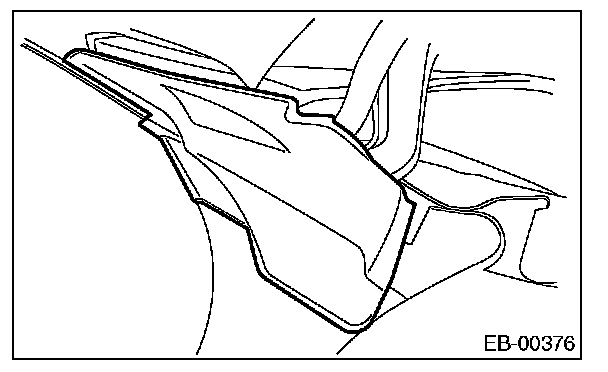

6. Remove the cowl panel side.

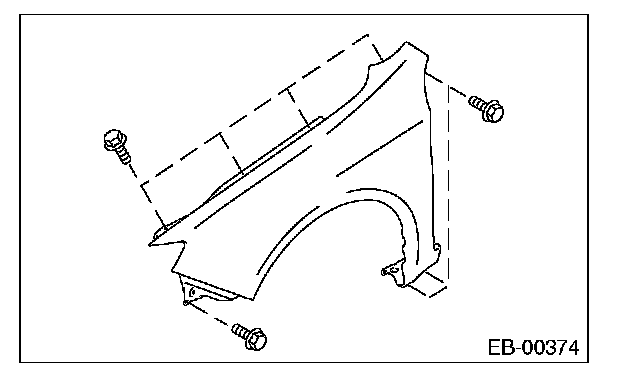

7. Remove the bolt, and remove the front fender panel.






INSTALLATION

1. Install in the reverse order of removal.

Tightening torque: 7.4 N.m (0.75 kgf-m, 5.5 ft-lb)

2. Install while paying attention to make a uniform clearance around the front fender panel. For the dimension of clearance, refer to SPECIFICATION in General Description.

CAUTION: After attaching the front fender panel, always perform headlight beam level adjustment.
