Trunk Lid Lock Assembly
Trunk Lid Lock AssemblyREMOVAL 1.
Disconnect the connector to remove the trunk opener cable.
2.

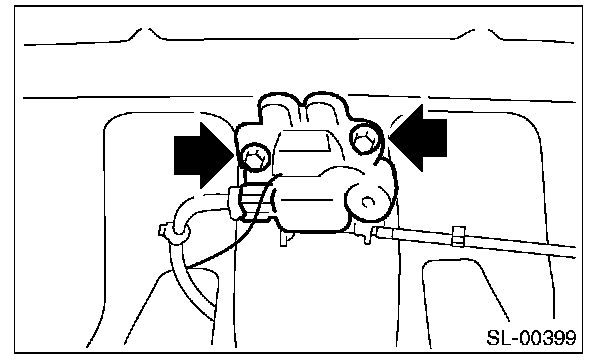

Remove the two bolts to remove the trunk lid lock assembly.
INSTALLATIONInstall in the reverse order of removal.
NOTE: -
Apply grease to the movable part.
-
Make sure the lock works correctly after installation.
