Trunk / Liftgate Lock: Testing and Inspection

INSPECTION
1. Disconnect the trunk lid actuator harness connector.

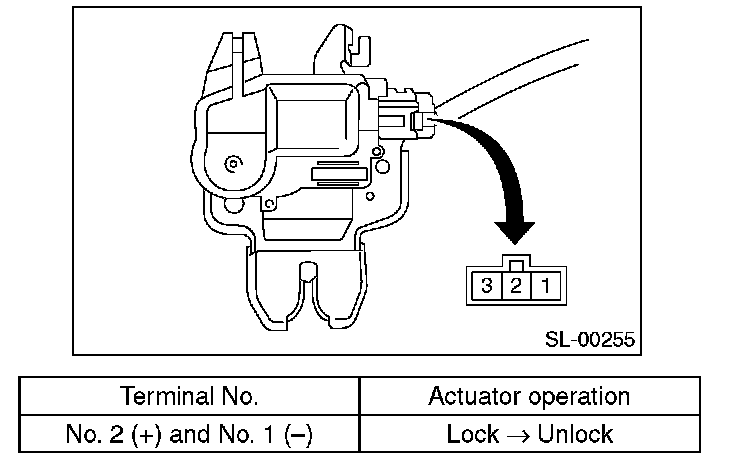

2. Connect the battery to the trunk lid actuator terminals.

If defective, replace the trunk lid actuator.

3. Check the striker for deformation or abnormal wear.
4. Check the safety lever for improper movement.
5. Check other levers and springs for rust formation or irregular movement.
6. Check the trunk opener cable for smooth operation.
