G Sensor
G Sensor REMOVAL 1)
Disconnect the ground cable from the battery.
2)
Remove the console box.
3)
Disconnect the connector from G sensor.
4)
Remove the G sensor from the body.
CAUTION:
^ Do not drop or bump the G sensor.
^ The G sensor integrated with the bracket. Do not disassemble. INSTALLATION Install in the reverse order of removal.
CAUTION:

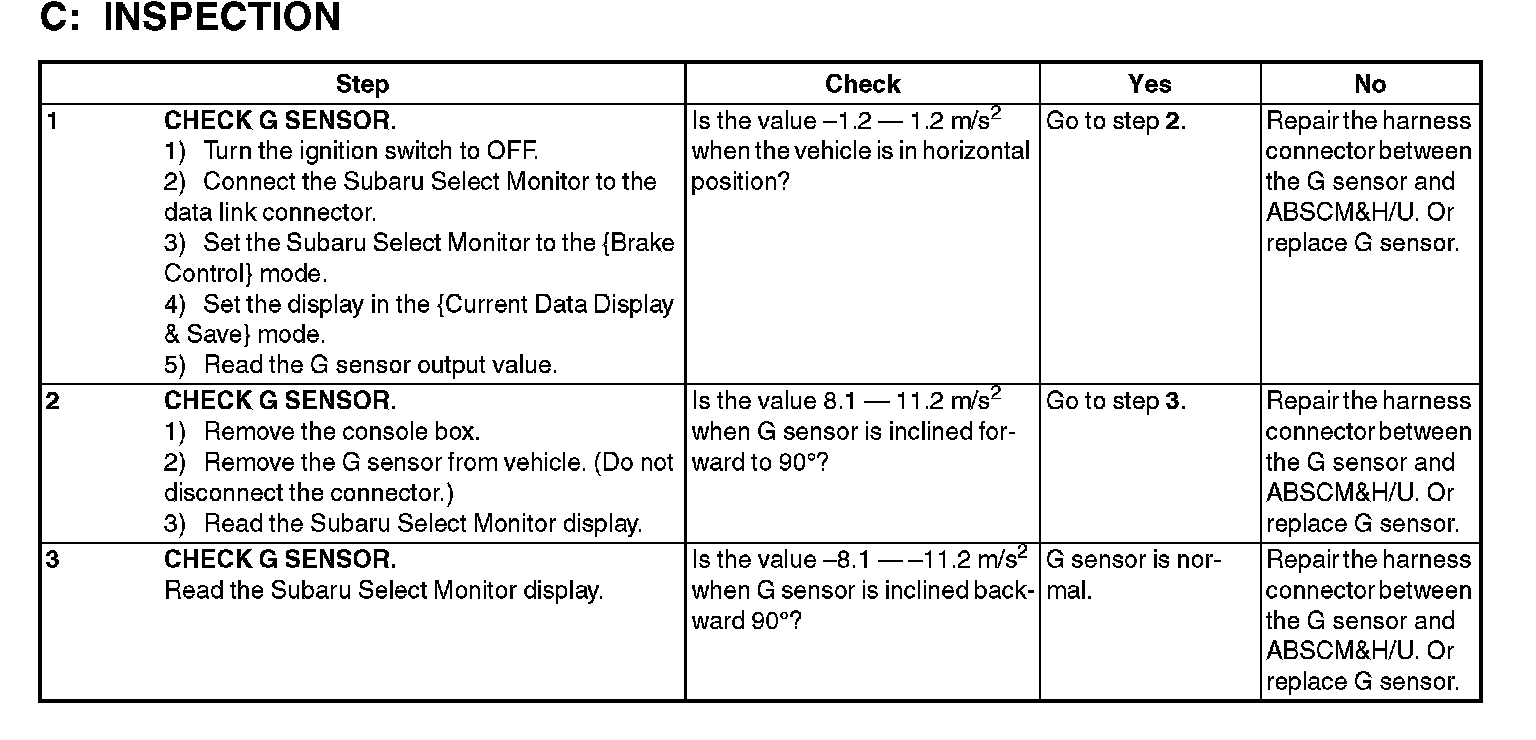

Do not drop or bump the G sensor. INSPECTION
