Control Unit (Manual A/C Model)

Control Unit (Manual A/C Model)

REMOVAL

1. Disconnect the battery ground cable from the battery.
2. Remove the ornament panel.
3. Remove the knee guard panel.

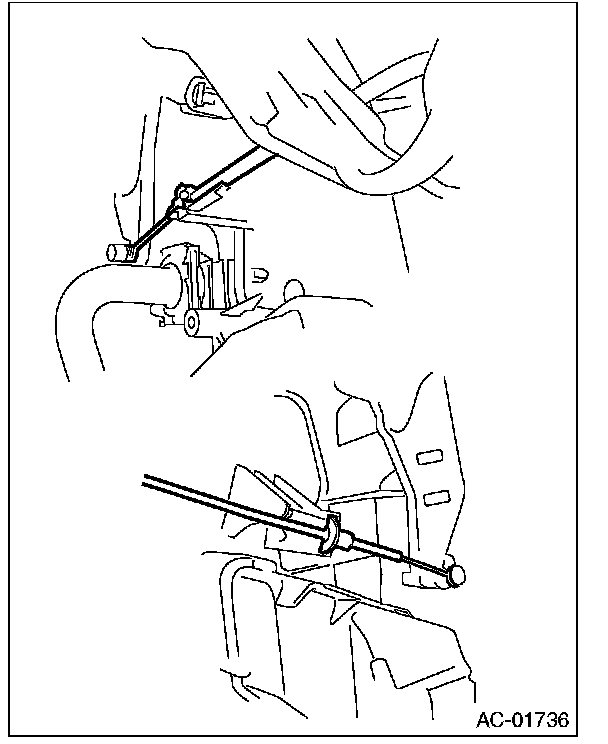

4. Remove the control wires from both sides of the heater and cooling unit.

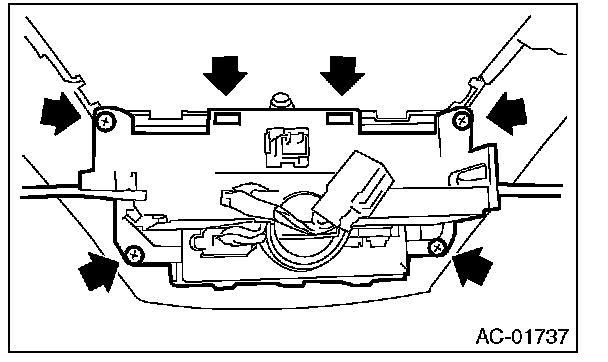

5. Remove the screw and claw to detach the control unit from the ornament panel RH.






INSTALLATION
Install in the reverse order of removal.

NOTE: Assemble the plate at the end of control wires to the heater case securely.
