Battery: Service and Repair

Battery

REMOVAL
1. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.

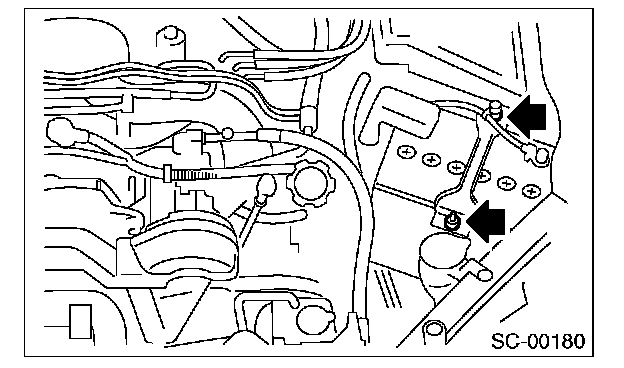

2. Remove the flange nut from battery rod and remove battery holder.






3. Remove the battery.

INSTALLATION
Install in the reverse order of removal.
Tightening torque: 3.5 N.m (0.36 kgf.m, 2.58 ft.lb)

NOTE:
- Clean the battery cable terminals and apply grease to retard the formation of corrosion.
- Connect the battery positive (+) terminal, and then connect the negative (-) terminal.
- After the battery is installed, initial diagnosis of the electronic throttle control is performed. Therefore, start the engine 10 seconds or more after turning the ignition switch to ON.
