Removal and Replacement

Starter

REMOVAL

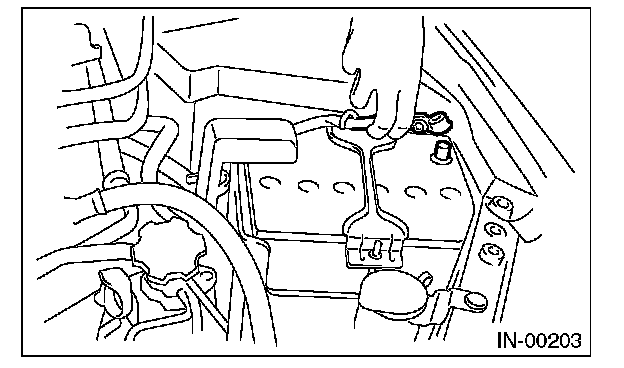

1. Disconnect the ground cable from the battery.






2. Remove the air intake chamber. (Non-turbo model)
3. Remove the intercooler. (Turbo model)

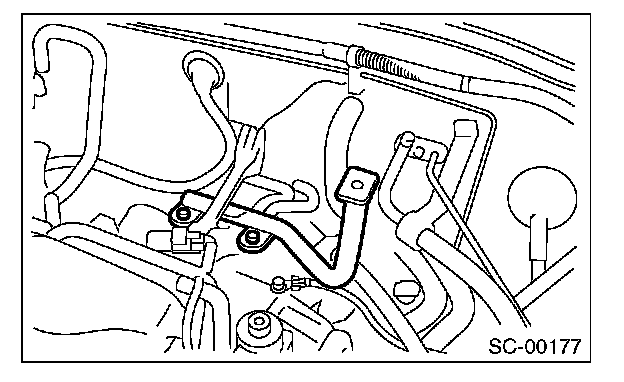

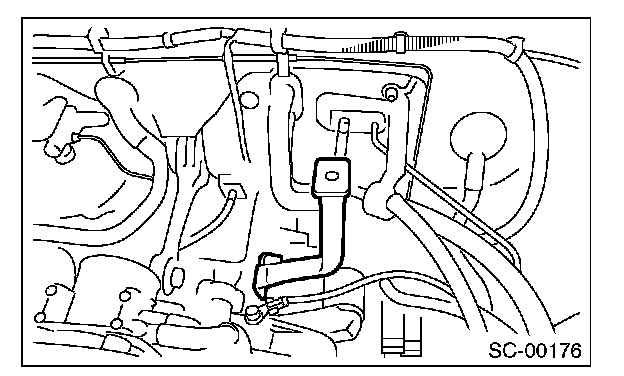

4. Remove the air intake chamber stay. (Non-turbo model)

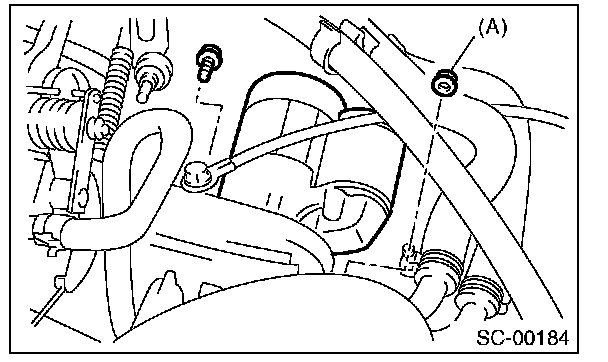

- MT model






- AT model

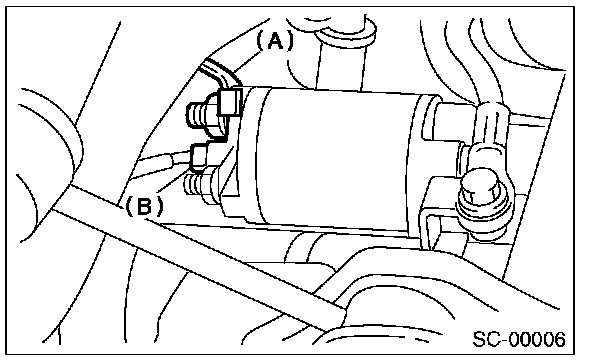

5. Disconnect the connector (B) and terminal (A) from starter.

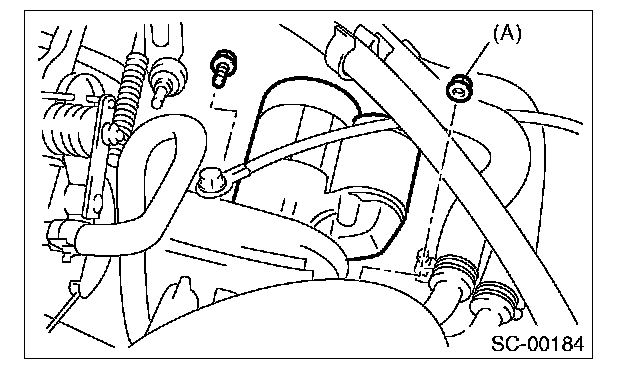

6. Remove the starter from transmission.

NOTE: For the MT model, a bolt is used in place (A).






INSTALLATION
Install in the reverse order of removal.

NOTE: For the MT model, a bolt is used in place (A).

Tightening torque: 50 N.m (5.1 kgf.m, 36.9 ft.lb)
