Windows: Testing and Inspection

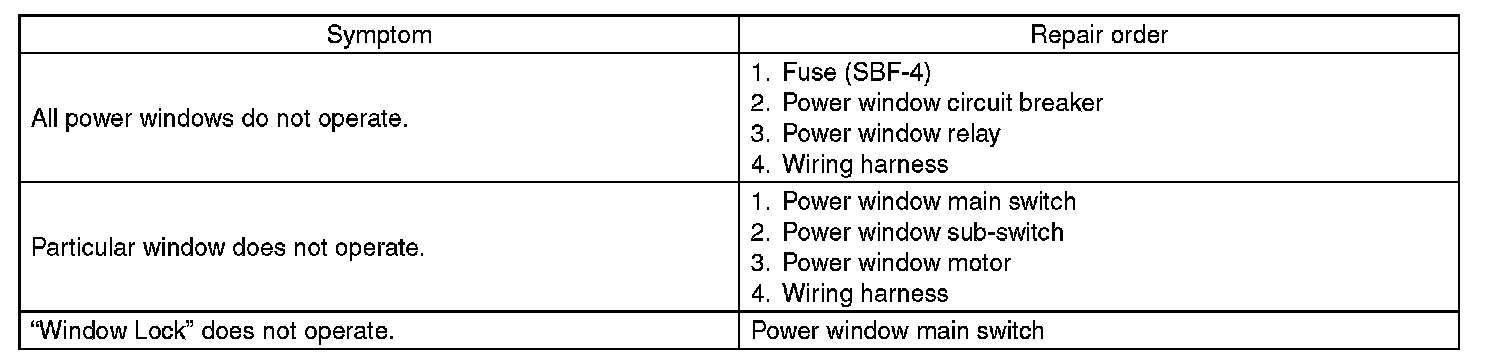

POWER WINDOW SYSTEMINSPECTIONNOTE:For removal of each component of the power window system, refer to the respective section.
-
Power window control switch.
-
Front door glass.
-
Front regulator & motor assembly.
-
Rear door glass.
-
Rear regulator & motor assembly.
