Wiper Switch: Service and Repair
Combination Switch (Wiper)REMOVAL 1.
Disconnect the ground cable from the battery.
2.

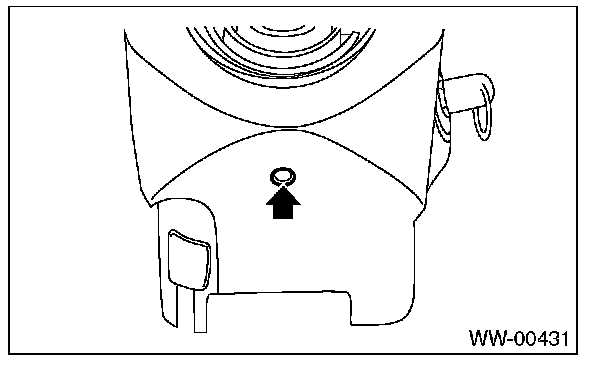

Loosen the screw to remove a steering column lower cover.
3.

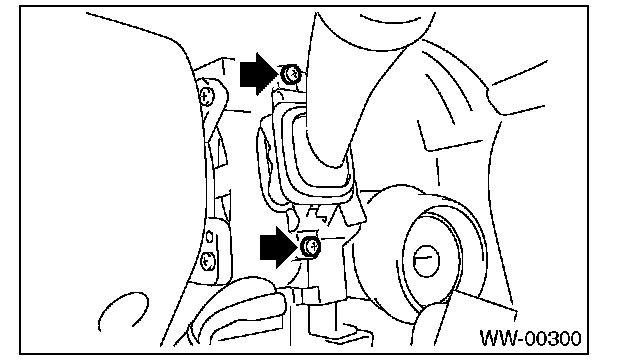

Remove the three screws installing steering column cover upper.
4.
Disconnect the connector from the
wiper switch.
5.
Loosen the screw and remove the
wiper switch.
INSTALLATIONInstall in the reverse order of removal.
