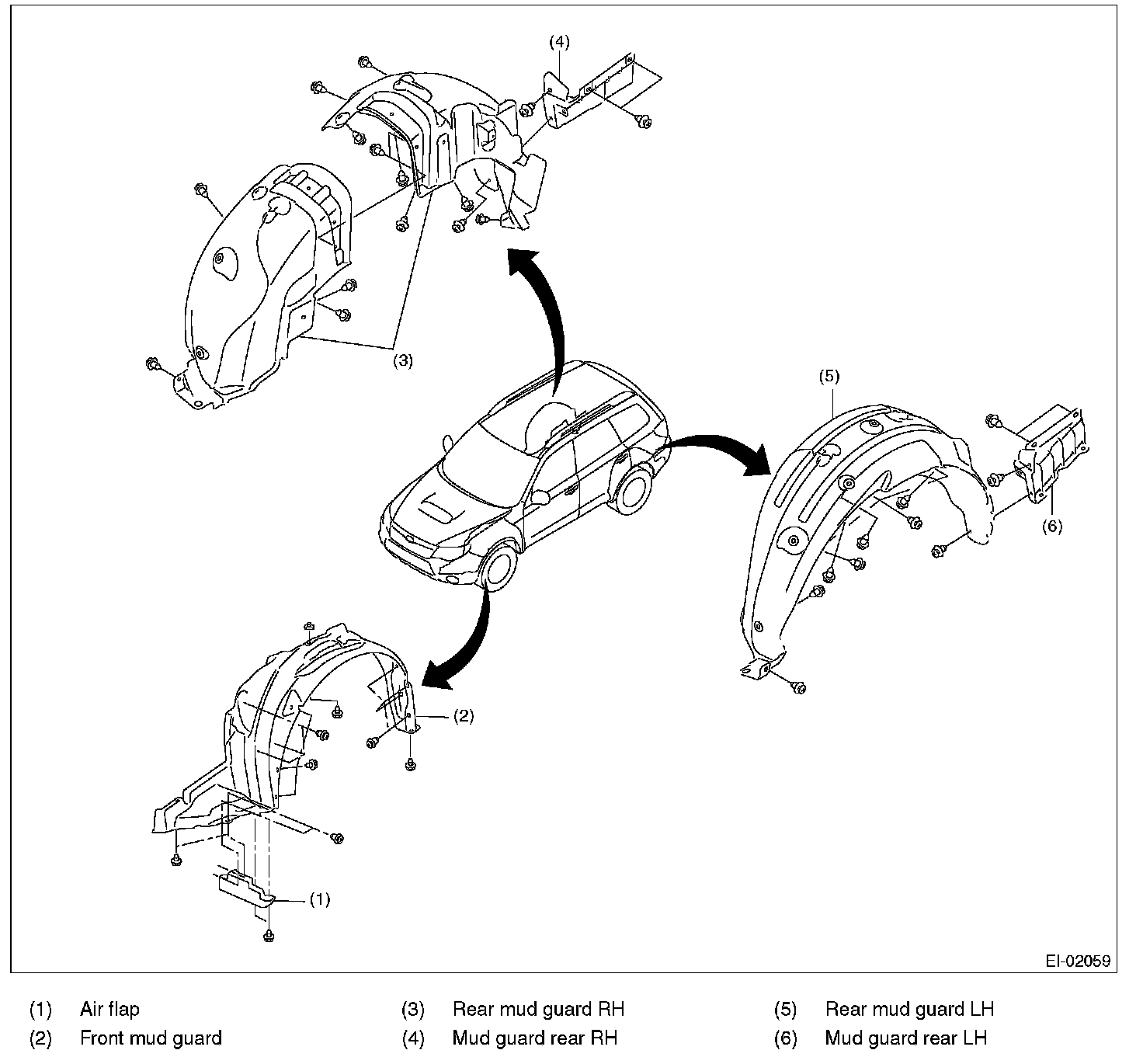

Front Fender Liner: Service and Repair
Mud Guard
Mud Guard:
REMOVAL 1.

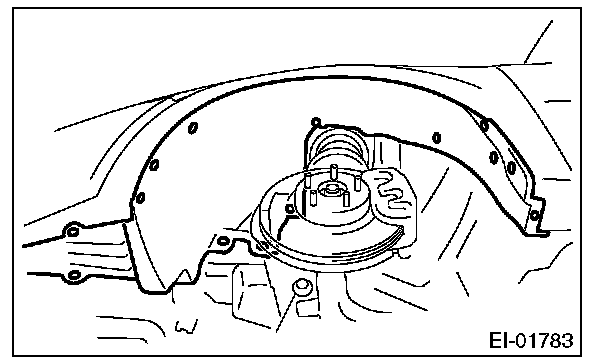

FRONT MUD GUARD
1.
Jack-up the vehicle.
2.
Remove the front wheels.
3.
Remove the clips, then remove the mud guard.
2.

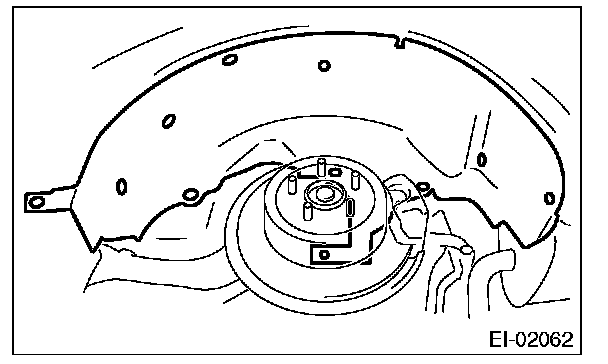

REAR MUD GUARD
1.
Jack-up the vehicle.
2.
Remove the rear wheels.
3.
Remove the clips and screw (RH one location), and remove the mud guard.
INSTALLATIONInstall in the reverse order of removal.
