Clock: Service and Repair
ClockREMOVAL 1.
Disconnect the ground cable from battery.
2.
Remove the audio.
3.

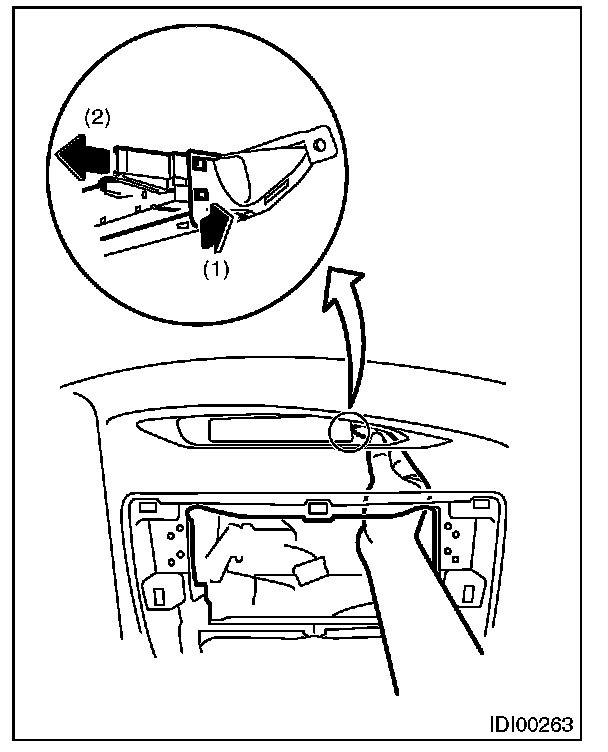

Insert your hands from the audio space, disengage the tabs of the bracket on the back side of the instrument panel, and push the clock
4.
Disconnect the harness connector and remove the clock.
INSTALLATIONInstall in the reverse order of removal.
