Backup Lamp: Testing and Inspection
Back-up Light SystemINSPECTION 1.

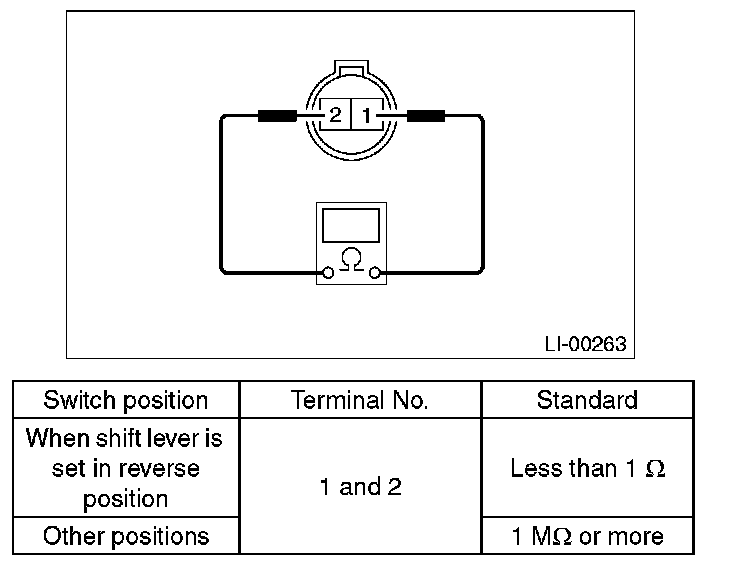

BACK-UP LIGHT SWITCH (MT MODEL)
Measure the resistance between the back-up light switch terminals.Measure the resistance between the back-up light switch terminals.
2.

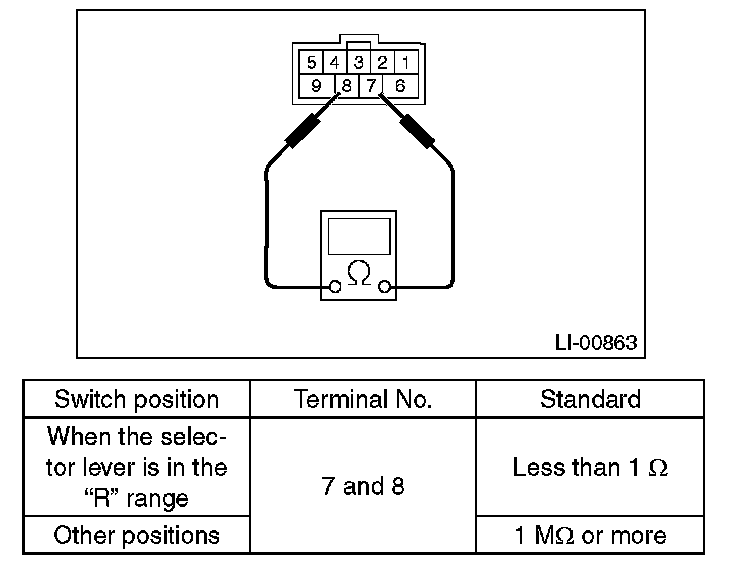

INHIBITOR SWITCH (AT MODEL)
Measure the resistance between the inhibitor switch terminals.
