Removal

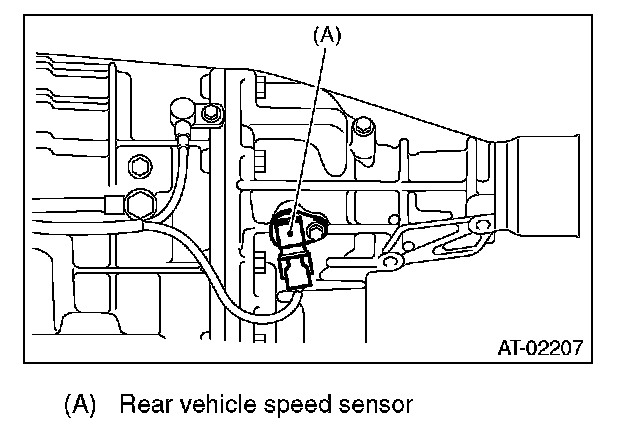

Rear Vehicle Speed Sensor

REMOVAL

1) Set the vehicle on a lift.
2) Disconnect the ground cable from the battery.
3) Lift up the vehicle.
4) Disconnect the connector from the rear vehicle speed sensor.

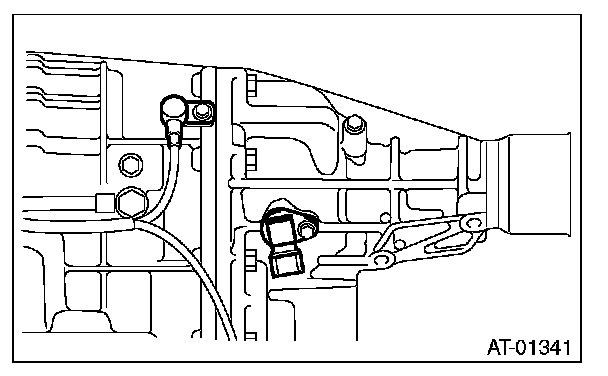

5) Remove the rear vehicle speed sensor.
