Fuel Level Sensor
Fuel Level SensorINSPECTIONNOTE: When inspecting the
fuel level sensor, perform the work with it installed to the fuel pump.
1.

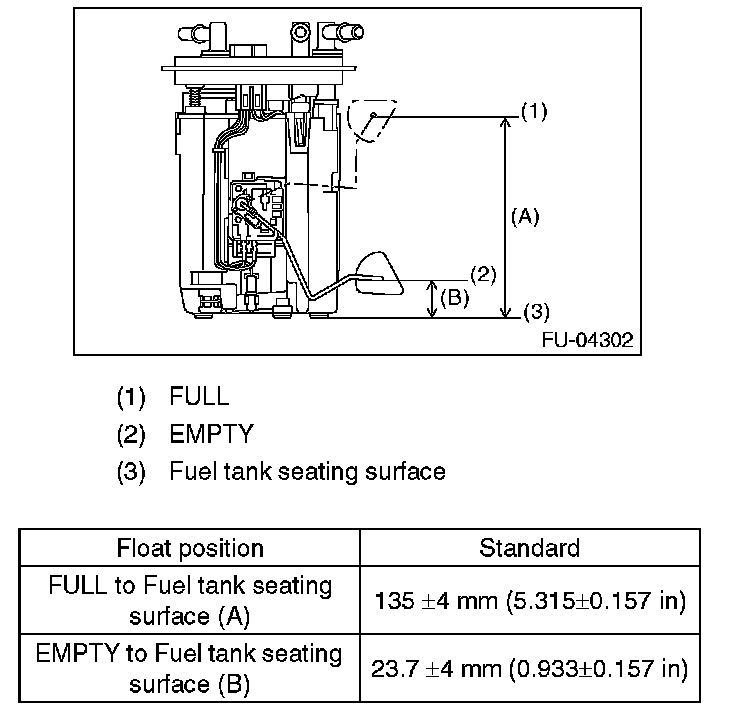

Measure the
fuel level sensor float position.
2.

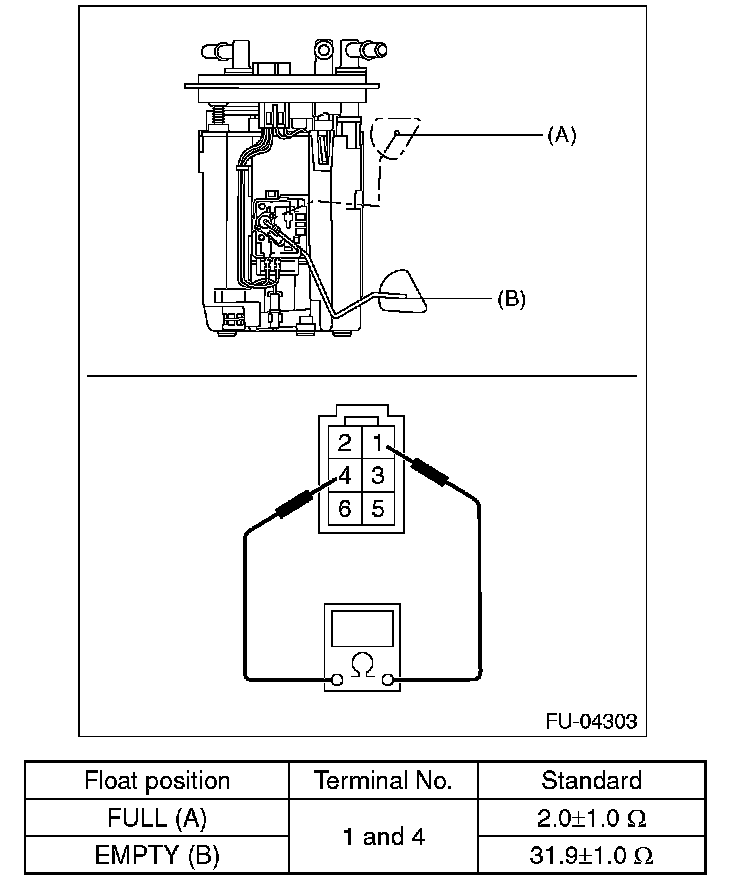

Measure the resistance between
fuel level sensor terminals.
