With ABS
G SENSORREMOVAL 1)
Disconnect the ground cable from the battery.
2)
Remove the console box.
3)
Disconnect the connector from G sensor.
4)

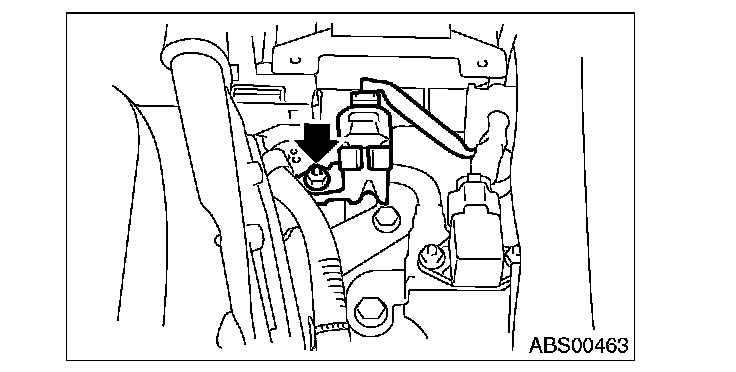

Remove the G sensor from the body.
CAUTION:
- Do not drop or bump the G sensor.
- The G sensor integrated with the bracket. Do not disassemble.INSTALLATION Install in the reverse order of removal.
CAUTION:

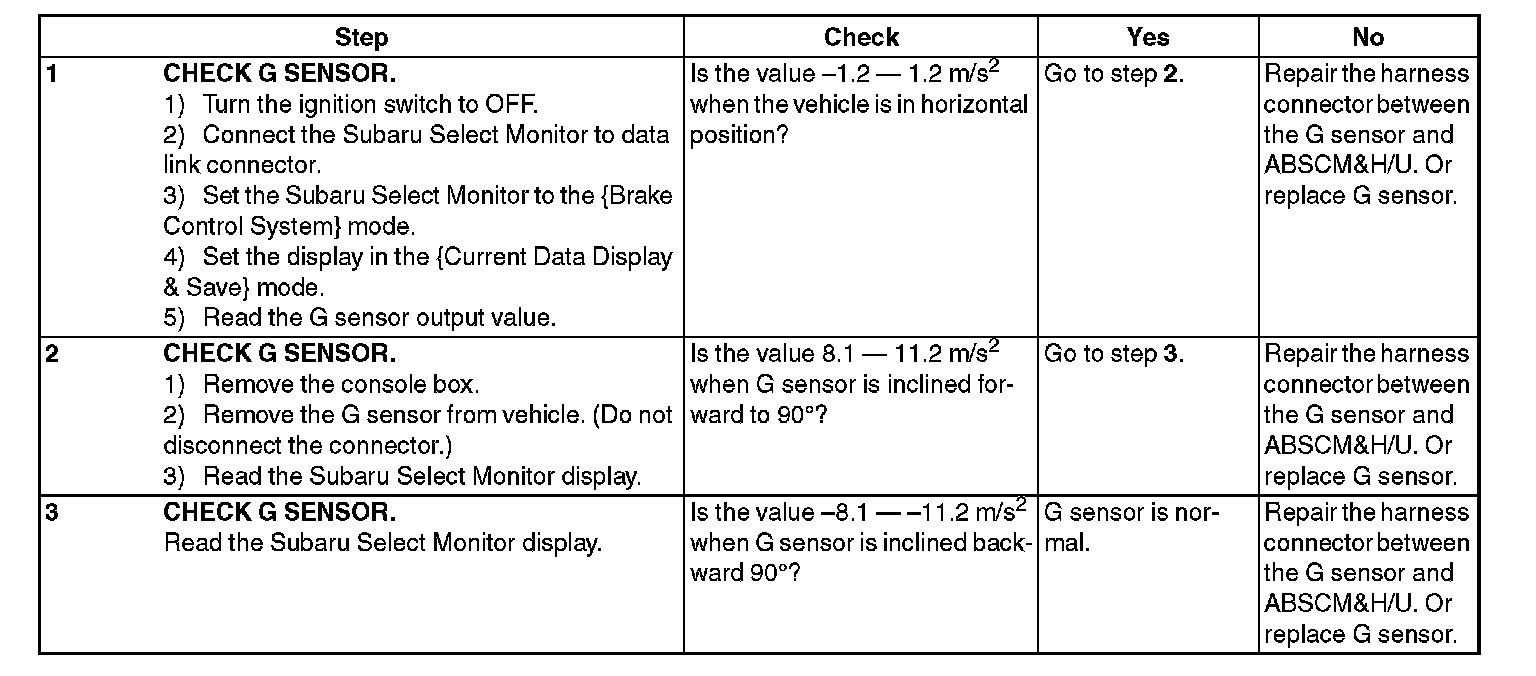

Do not drop or bump the G sensor.INSPECTIONStep 1-Step 3:
