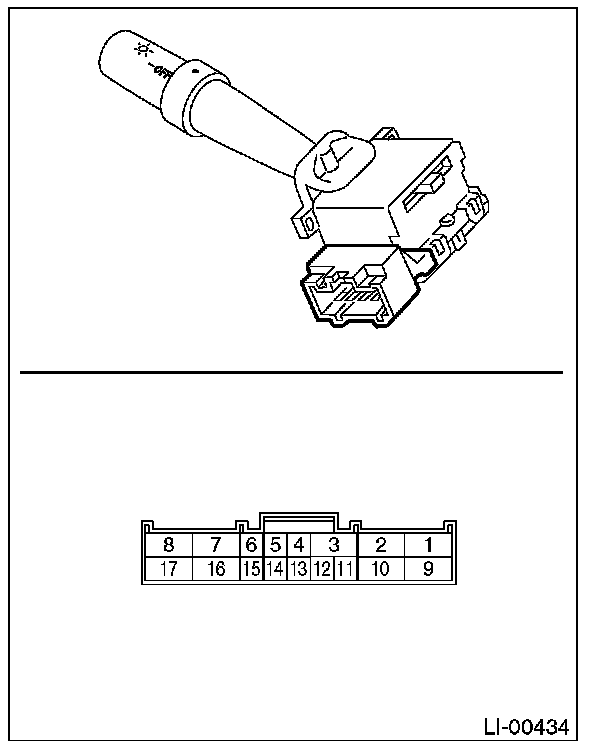

Combination Switch (Light)
Combination Light SystemINSPECTIONMeasure the resistance between
combination switch terminals.
1.

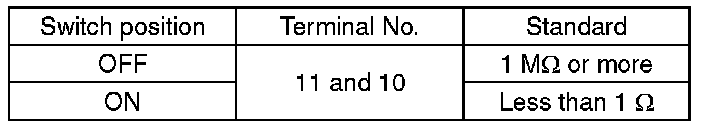

LIGHTING SWITCH
Replace the
combination switch (light) if faulty.
2.
DIMMER & PASSING SWITCH
Replace the
combination switch (light) if faulty.
3.

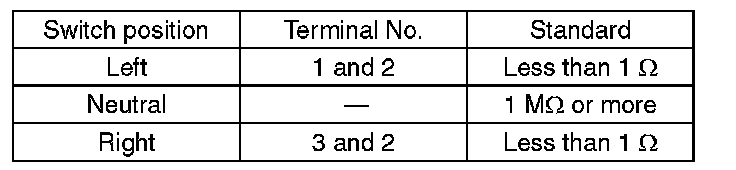

TURN SIGNAL SWITCH Replace the
combination switch (light) if faulty.
4.
FRONT FOG LIGHT SWITCH
Replace the
combination switch (light) if faulty.
