Inspection

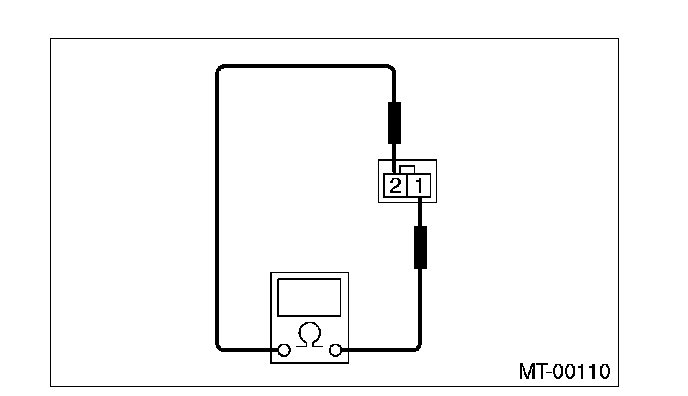

INSPECTIONBACK-UP LIGHT SWITCH Check the back-up light switch.
NEUTRAL POSITION SWITCH 1)
Turn the
ignition switch to OFF.
2)
Disconnect the connector of neutral position switch.
3)

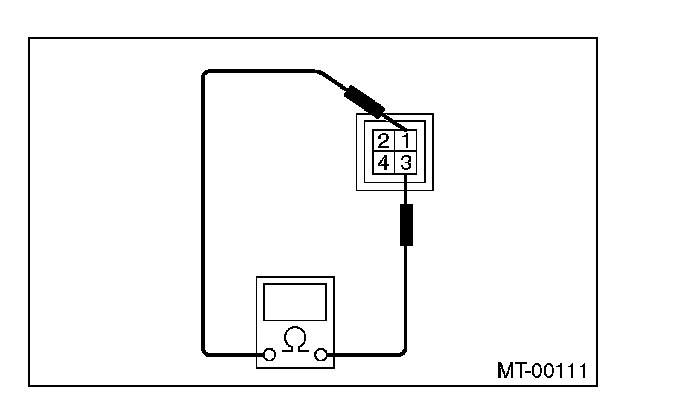

Measure the resistance between neutral position switch terminals.
^

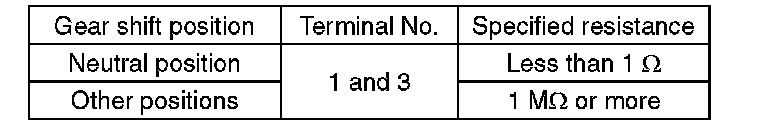

Non-turbo model
^

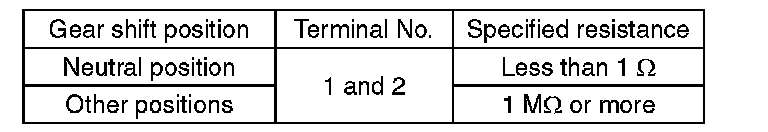

Turbo model
4)
Replace faulty parts.
